Difference between DTF Printers and UV DTF Printers

Direct-to-Film (DTF) and Ultraviolet Direct-to-Film (UV DTF) printing technologies represent significant strides in the realm of personalized customization and industrial printing. While both methods employ an indirect transfer approach – printing onto a film before transferring to a substrate – their underlying principles, application scopes, consumables, process flows, and final outputs exhibit notable distinctions. Understanding these differences is paramount for selecting the optimal printing technology tailored to specific requirements.

1. Working Principle and Curing Mechanism

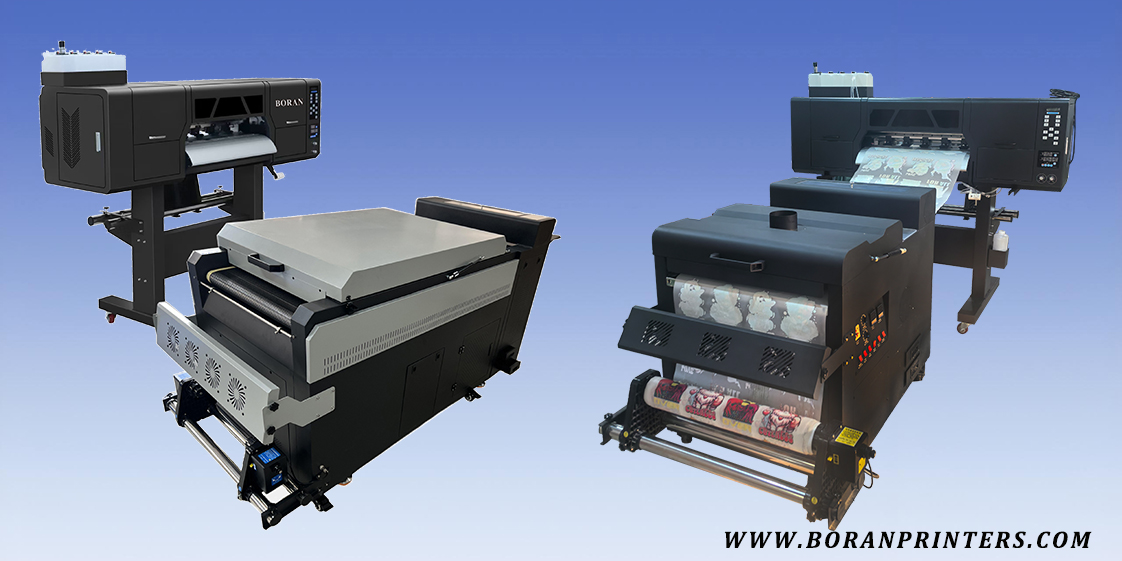

DTF Printers:

DTF printers utilize water-based pigment inks, directly jetting designs onto specialized PET films, often followed by a layer of white ink. A crucial step involves the application of hot-melt adhesive powder onto the wet ink surface. Subsequently, the powdered film undergoes a heating (curing) process, causing the powder to melt and bond with the ink layer. The final transfer to the fabric or other heat-resistant substrate is achieved through heat pressing, fusing the ink and adhesive onto the material. The curing mechanism in DTF relies on thermal activation of the hot-melt adhesive.

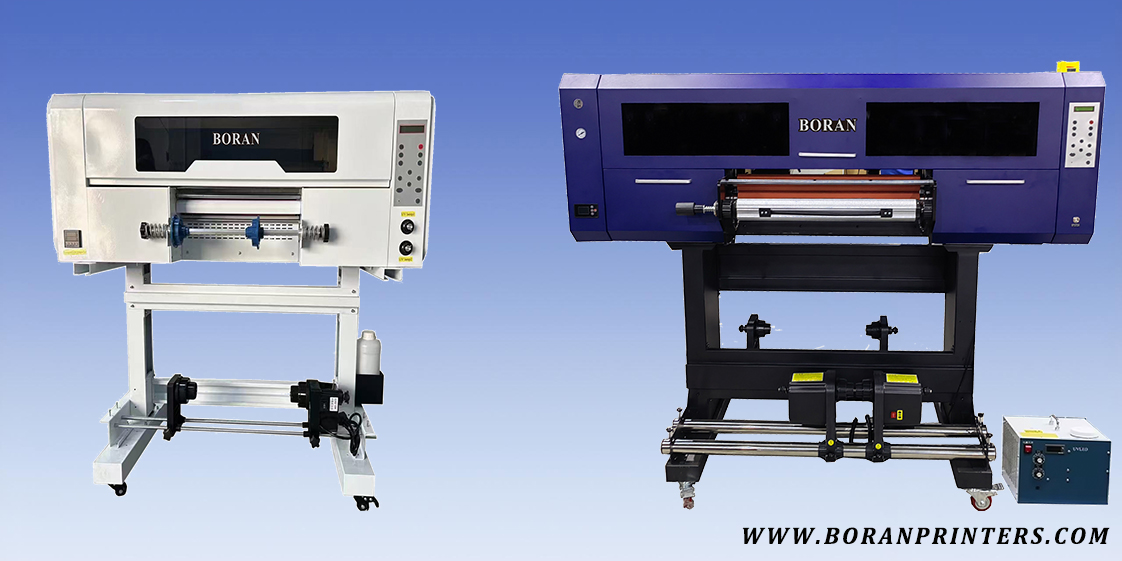

UV DTF Printers:

In contrast, UV DTF printers employ ultraviolet (UV) curable inks. The typical workflow involves printing the design onto a special A film (PET-based). During the printing process, UV lamps simultaneously irradiate the ink, causing it to cure instantly on the A film's surface. Some UV DTF processes involve laminating a B film (often with an adhesive backing) onto the printed A film. For transfer, the design on the A film (now cured and possessing a UV-activated adhesive layer) is transferred to the substrate through lamination or manual pressure. Subsequently, the A film is peeled away, leaving the design firmly adhered to the substrate, with the B film often acting as a final protective or adhesive layer. The curing process in UV DTF is entirely dependent on UV light exposure, eliminating the need for heat.

2. Consumable Variations

DTF Printers:

The primary consumables for DTF printing include:

• DTF Inks: Water-based pigment inks, encompassing CMYK and white.
• DTF Films: Specially coated PET transfer films.
• Hot-Melt Adhesive Powder: A heat-activated powder for bonding ink to the substrate.

UV DTF Printers:

UV DTF printing primarily relies on:

• UV Inks: Oil-based inks that cure rapidly under UV light, including CMYK, white, and often varnish for added gloss and durability.
• AB Films: A two-layer film system consisting of an A film (design receiving film) and a B film (transfer assist film, typically adhesive-backed).

3. Process Flow Comparison

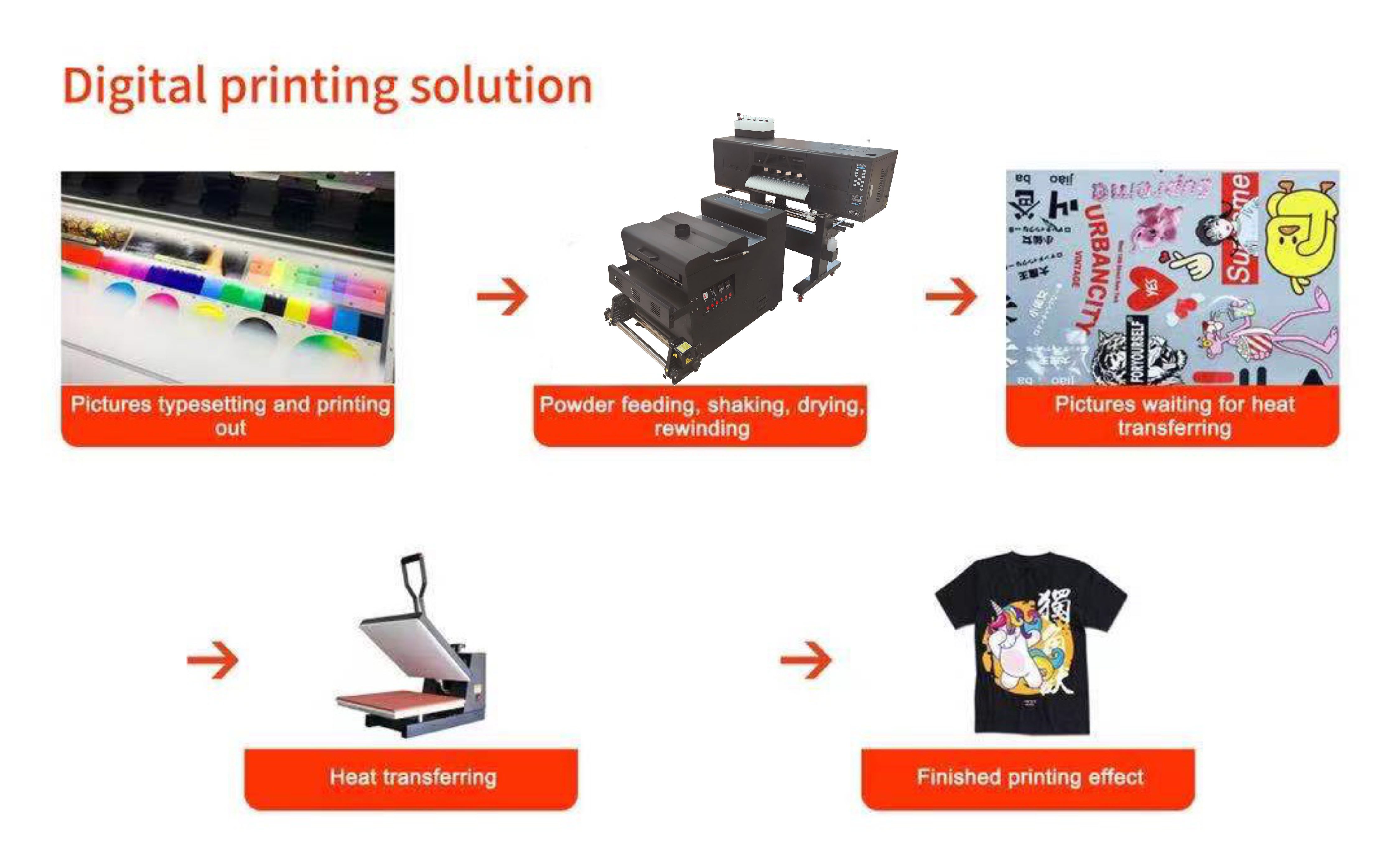

DTF Printing:

1. Design creation and RIP processing, generating print data including a white ink layer.
2. Printing the design onto the DTF film (color first, then white).
3. Applying hot-melt adhesive powder.
4. Heating to cure the powder.
5. Heat pressing the transfer film onto the substrate.
6. Cooling and peeling off the film.

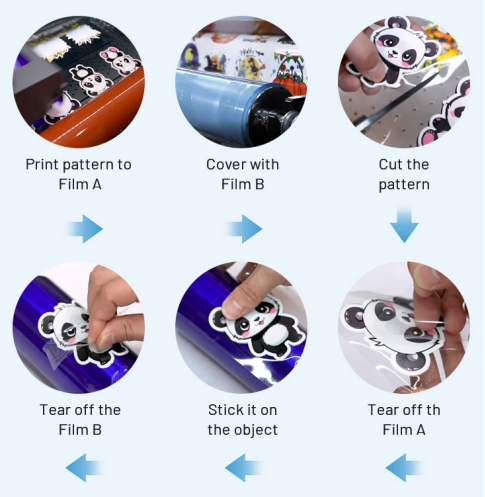

UV DTF Printing:

1. Design creation and RIP processing.
2. Printing the design onto the A film (UV curing occurs simultaneously).
3. (Optional) Laminating the B film onto the printed A film.
4. Transferring the design from the A film to the substrate (via lamination or manual pressure).
5. Peeling off the A film, leaving the design and adhesive layer from the B film on the substrate.

4. Substrate Compatibility

DTF Printers:

DTF technology boasts broad applicability in textile printing, particularly excelling on various fabrics like cotton, polyester, and their blends, regardless of color. With appropriate pre-treatment, DTF can also be applied to heat-resistant materials such as leather.

UV DTF Printers:

UV DTF technology transcends the substrate limitations of traditional DTF, enabling high-quality transfers onto a diverse range of rigid materials such as glass, metal, plastics, ceramics, wood, and acrylic. Crucially, UV DTF can even transfer designs onto irregular or curved surfaces, a feat challenging for conventional UV flatbed printers.

5. Print Characteristics and Effects

DTF Prints:

DTF prints are characterized by vibrant colors, intricate detail reproduction, good wash and abrasion resistance, and a relatively soft hand feel. The use of white ink ensures color saturation and opacity on dark fabrics.

UV DTF Prints:

UV DTF prints exhibit high color saturation, strong three-dimensionality, excellent scratch and abrasion resistance, and a degree of water resistance. The UV-cured ink layer often possesses a more tactile texture, and the inclusion of varnish in some processes can enhance the product's visual appeal with a glossy finish. Eliminating the need for heat pressing prevents potential damage to heat-sensitive materials.

6. Production Efficiency and Cost

DTF Printing:

DTF printing efficiency is influenced by factors such as printing speed, powder application, and curing time. Large-volume orders may entail longer production cycles. Consumable costs are relatively stable, but the heat pressing stage adds to energy consumption.

UV DTF Printing:

The instantaneous UV curing in UV DTF can lead to shorter production cycles, particularly for time-sensitive orders. The absence of heat pressing reduces energy costs. However, UV inks and AB films typically have a higher cost compared to DTF inks and PET films.

7. Environmental and Safety Considerations

DTF Printing:

DTF printing utilizes water-based inks, which are generally considered more environmentally friendly, although the hot-melt powder may emit slight odors during heating.

UV DTF Printing:

UV inks often contain lower levels of volatile organic compounds (VOCs), but some UV inks may have a noticeable odor, and the UV curing process necessitates precautions to avoid direct exposure to ultraviolet radiation.

Conclusion

The choice between a DTF printer and a UV DTF printer hinges on specific application needs, budget constraints, production volume, and the desired substrate compatibility and print characteristics. For businesses primarily focused on garment customization and textile printing, DTF printers often present a more cost-effective and established solution. Conversely, for those seeking to expand into a wider array of rigid and uniquely shaped products, demanding higher durability and specialized effects, UV DTF printers offer greater versatility and broader application potential. Both technologies represent valuable advancements, complementing each other and driving innovation within the personalized customization and industrial printing sectors.
