6090 UV printer.jpg

Luxury A1 UV FLATBED PRINTER 60×90cm size

Luxury A1 UV FLATBED PRINTER 60×90cm size
1.Printheads: 2-4 pcs TX800/I1600/I3200 Heads
2. Max Print Width: 60cm×90cm
3. Color: CMYK, W and Varnish
4.Max head height: 24cm

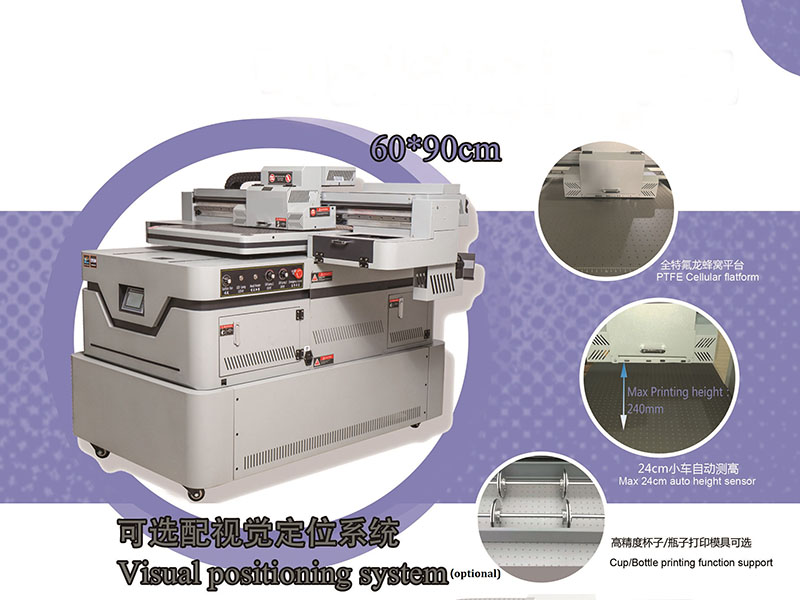

5. Cylindrical fixture &Visual Positioning system can be optional
6. Universal Printer: it can print almost all flat items , cylinder and irregular objects.

    Contact us

    Luxury A1 UV FLATBED PRINTER 60×90cm size

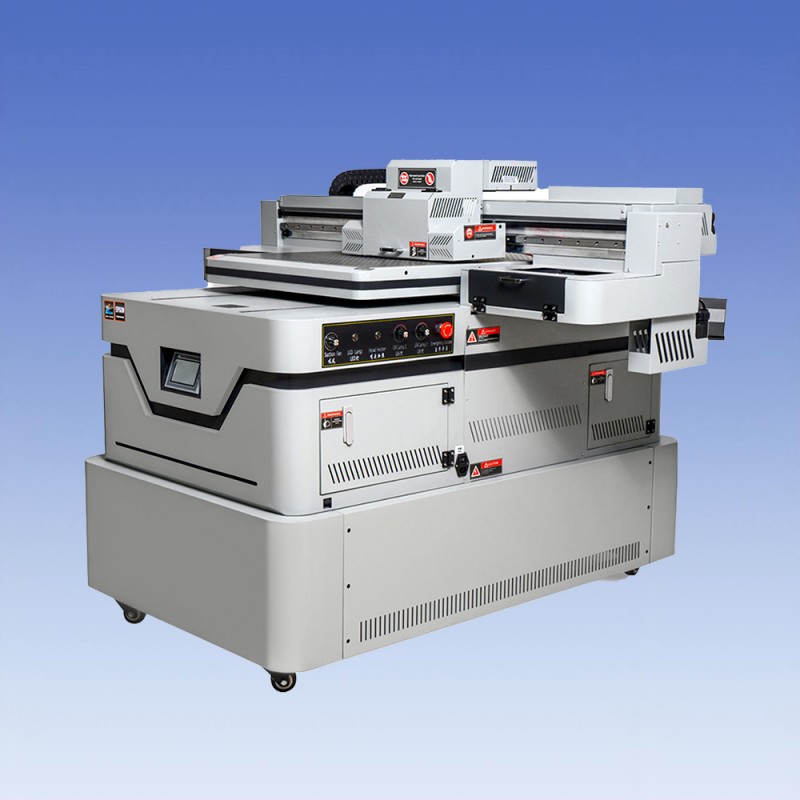

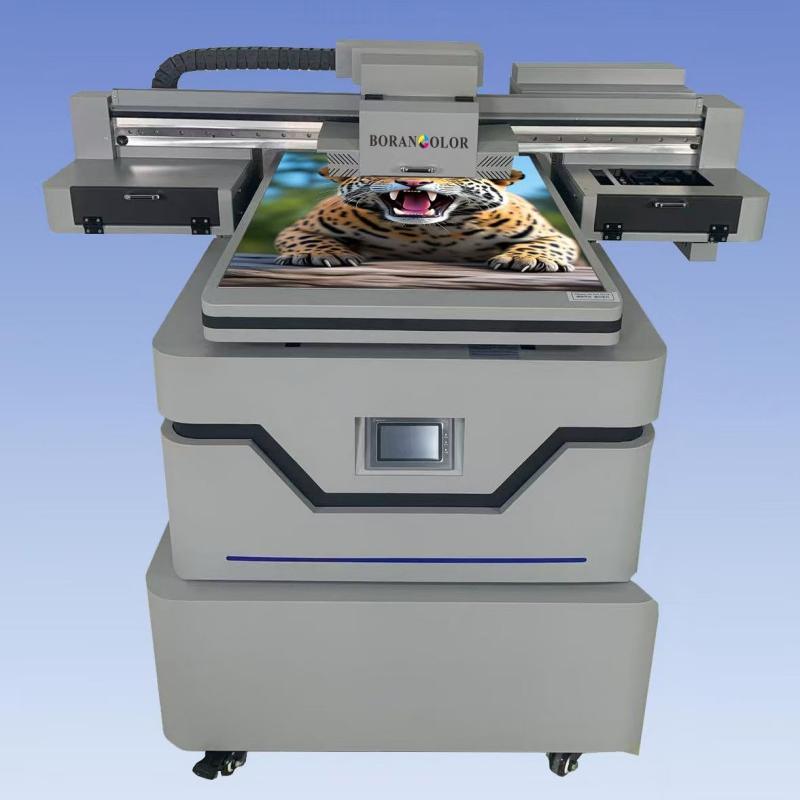

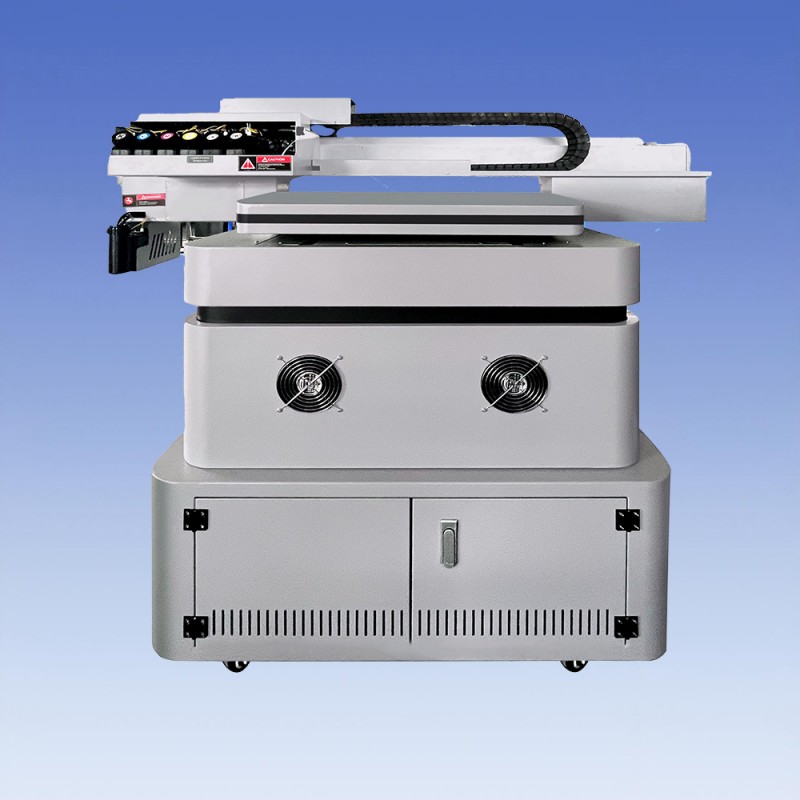

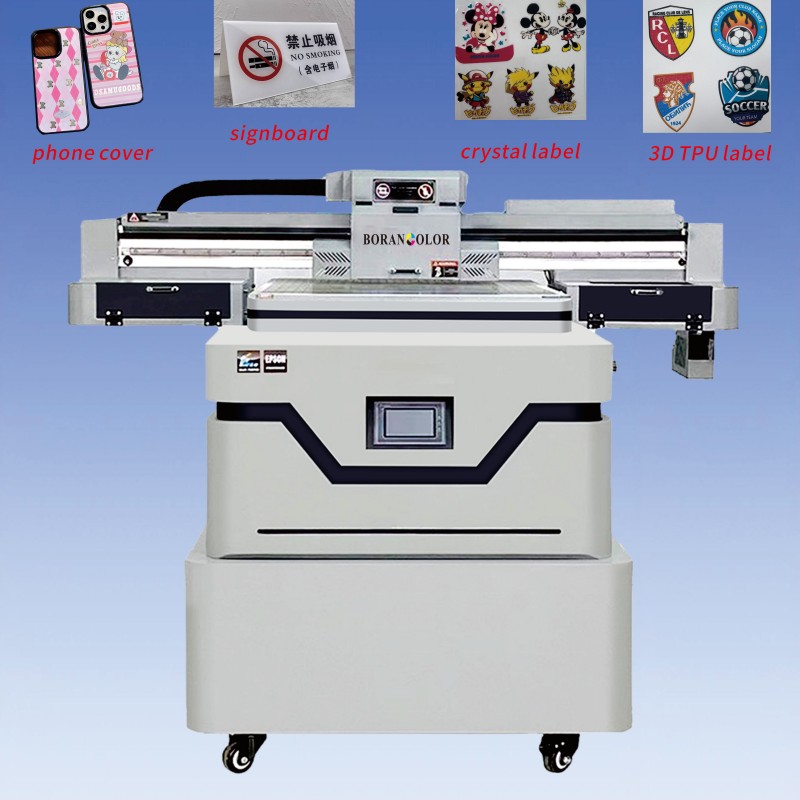

    6090 UV flatbed printer

    Main Features:

    1.Reliable boards system work on stable,high precision machine body,it can work on any line.
    2.With 2-4 printheads, XP600/TX800/I1600/I3200 can be optional you can print white ink and varnish ink freely;
    3.Automatic ink circulation & stirring system for white ink and lacking ink alarming system.Making sure non-stop working.Together with alarm function for ink shortage.
    4..White ink channel on or off optional and output percentage adjustable,make printing more vividly and saturation.
    5.Carriage height could reach to 24cm. And it can work on 4 heads by CMYK +white+varnish,Print speed faster,and control easier.
    6.Highly integration control software with non-stop working function ,easy to read and print file during printing.
    7.Support for multiple printing on same picture by one time,fit for most special production request.=
    8.Cylindrical fixture &Visual Positioning system can be optional  for cylinder UV printing and realized AI scanner printing for any batch product and irregular objects.
    9.We also provide UV Ink with high quality and low price.

    SPECIFICATION:

    MODEL

    BR-UV6090

    PRINT SIZE

    600mm×900mm

    PRINT HEAD

    Epson XP600/TX800/I1600/I3200 heads

    PRINTHEAD QUANTITY

    2-4 PCS



    PRINTHEAD HEIGHT

    240mm

    LIFTING FUNCTION

    Intelligent platform lifting

    Ink supply system

    Automatic ink supply

    PRINT SPEED

    XP600 heads

    I3200 heads



    4.5m²/h (SKETCH MODE)

    8m²/h (SKETCH MODE)



    3m²/h (PRODUCTION MODE)

    6m²/h (PRODUCTION MODE)



    2.5m²/h (RESOLUTION MODE)



    4m²/h (RESOLUTION MODE)

    INK



    UV ink

    PRINT COLOR



    CMYK/dual CMYK/CMYK+W/CMYK+W+V



    PRINT MEDIA



    Glass, Acrylic board, Wood, Metal. Glass, Leather, Bottles, irregular gifts etc.

    DRYING SYSTEM

    UV led

    RIP SOFTWARE

    MAINTOP

    COMPUTER OPERTIAON SYSTEM

    Windows 10

    FILE FORMAT

    TIFF,PDF,JPEG etc.

    POWER REQUIREMENT

    AC220V(+10),50HZ~60HZ,1600W

    ENVIRONMENT

    Temperature:20℃-28℃，Humidity:40%-60%,

    MACHINE SIZE

    L×W×H(1530×1600×1380)MM

    PACKAGE SIZE

    L×W×H(1650×1700×1600)MM

    PRINT MIDIA

    UV printing media

    PRODUCTION APPLICATION

    UV printing samples
