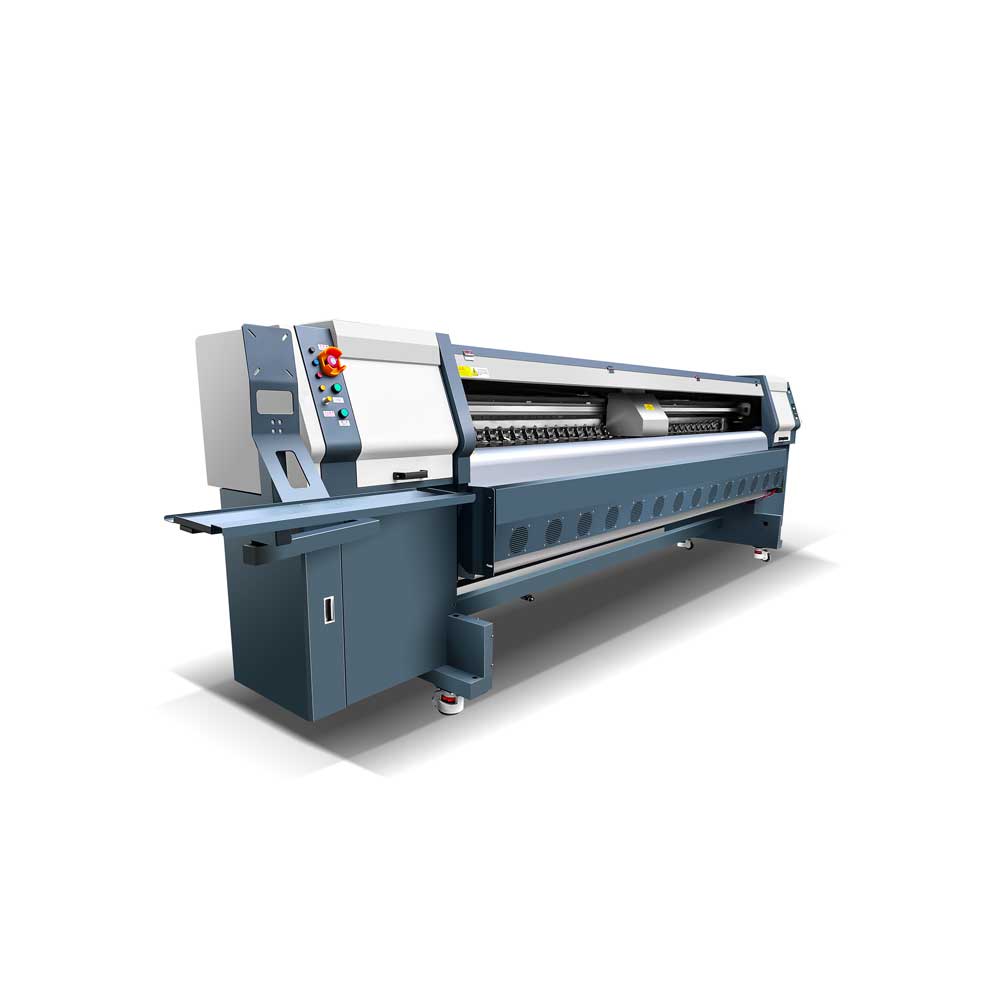

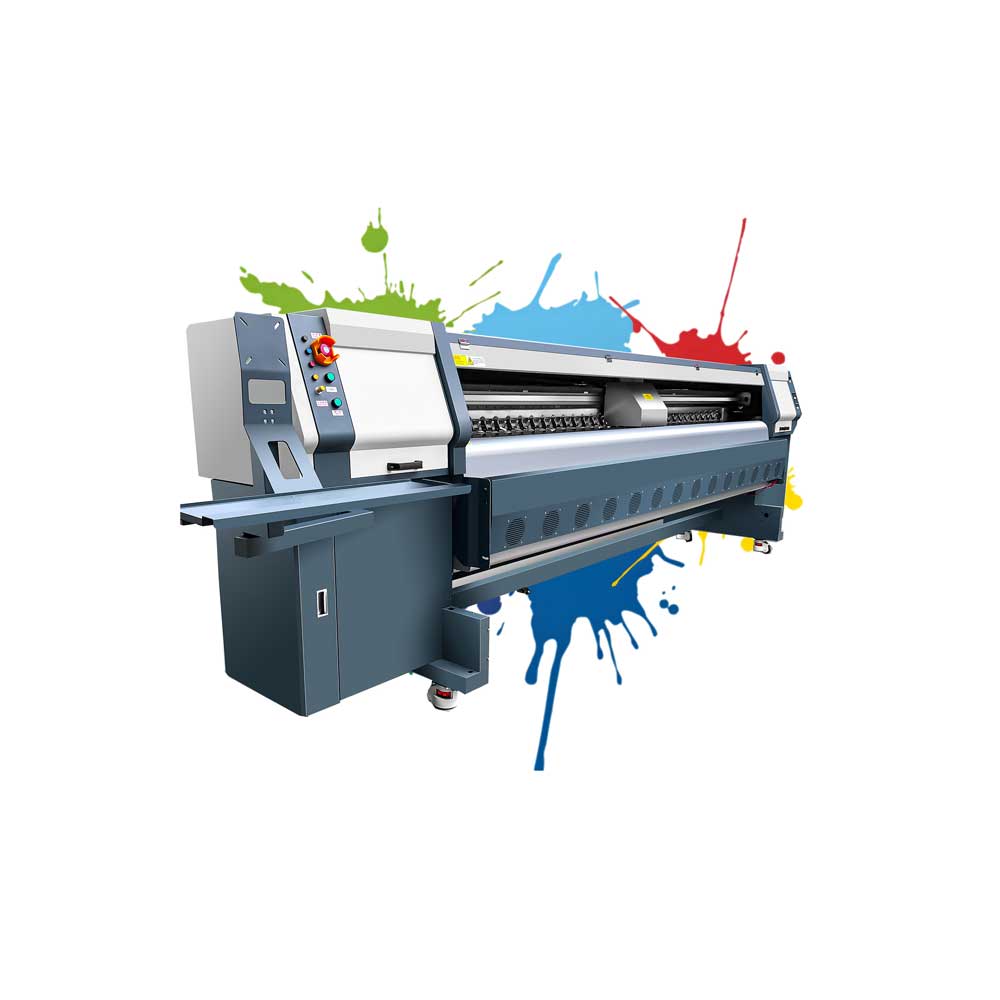

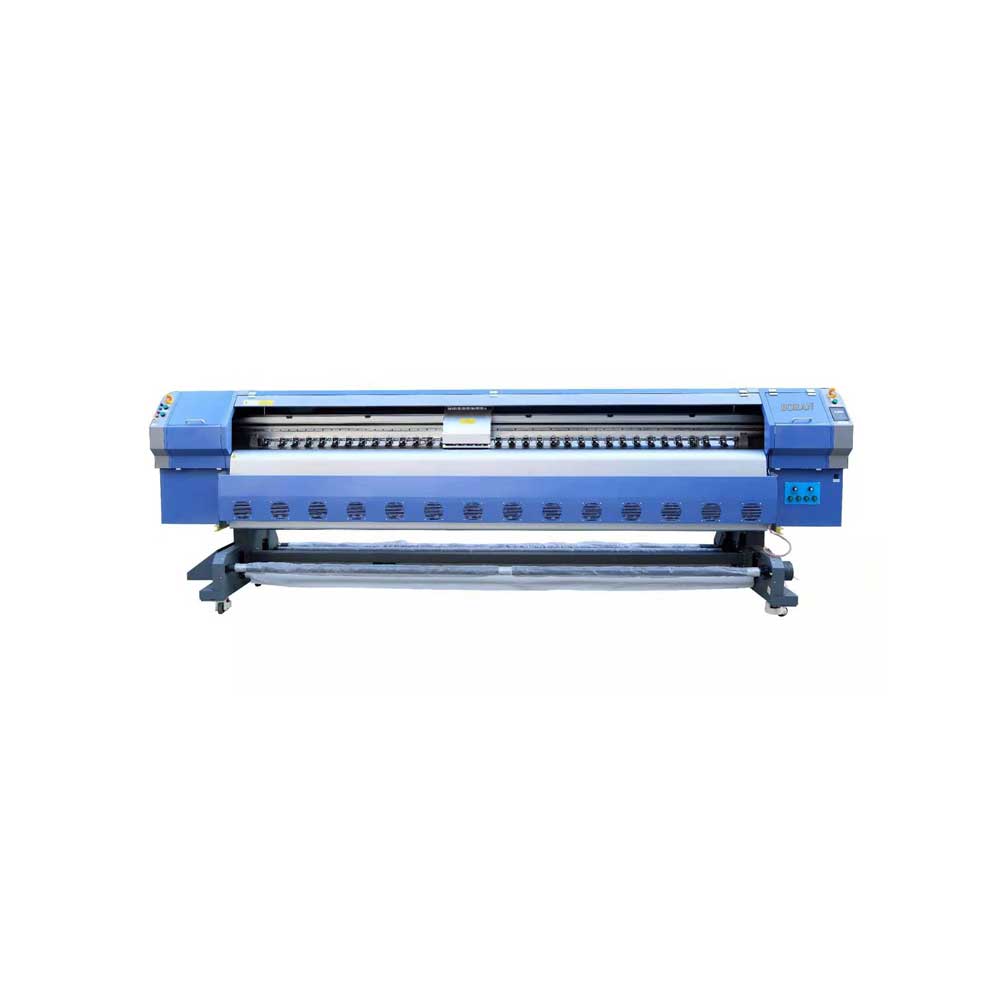

Large Format 3.2m Solvent Printer Flex Banner Printing Machine

Large Format 3.2m Solvent Printer Flex Banner Printing Machine
Print heads: Konica 512i (4 or 8 pcs)
Size: 3200mm
Color: CMYK/ Double CMYK
Speed: 100-240㎡/h
Application: 3.2m large format solvent printer can print on banner,vinyl,mesh,one way vision etc various types of roll to roll outdoor printing material.

Product Introduction

Large Format 3.2m Solvent Printer Flex Banner Printing Machine

High Productivity: our 3.2 large format solvent printer boasts a high productivity of 240㎡/h, making it an ideal choice for large format printing for retail, printing shops, and advertising companies.

Advanced Technology: Equipped with Konica 512i digital printing technology and a high-resolution printing solution , and the vibrant and precise printing ensures high-quality results for various applications.

Multi-Color Printing: The printer supports multicolor printing, allowing users to print with various colors, including cyan (C), magenta (M), yellow (Y), and black (K), making it versatile for various outdoor printing applications.

010203040506070809101112

Technicial Parameters

MODEL	BR-3200
PRINT SIZE	3200mm
PRINT HEAD	Konica 512i Heads
PRINTHEAD QUANTITY	4 PCS (4 or 8pcs optional)
PRINTHEAD HEIGHT	1.5mm-2.5mm optional
Ink supply system	Automatic ink supply
PRINT PRECISION &PRINT SPEED	2pass 726dpi×600dpi	100-150m²/h(4heads) 200-240m²/h(8 heads)
	3pass 726dpi×900dpi	60-100m²/h(4heads) 120-200m²/h(8 heads)
INK	Solvent ink
PRINT COLOR	CMYK/dual CMYK
Print Media	Flex banner, PP,one way vision etc. various types of indoor & outdoor material
DRYING SYSTEM	Infra-red heater with dry fan
RIP SOFTWARE	MAINTOP
COMPUTER OPERTIAON SYSTEM	Windows 7/Windows 10
FILE FORMAT	TIFF,PDF,JPEG
POWER REQUIREMENT	AC220V(+10),50HZ~60HZ
ENVIRONMENT	Temperature:20℃-28℃，Humidity:40%-60%,
MACHINE SIZE	L×W×H(4520×970×1450)MM
PACKAGE SIZE	L×W×H(5150×750×1135)MM

Features

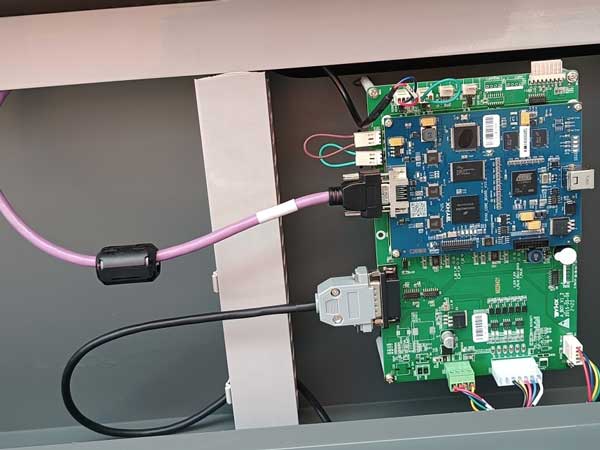

1. Brand BYHX control system, which makes the printing more stable

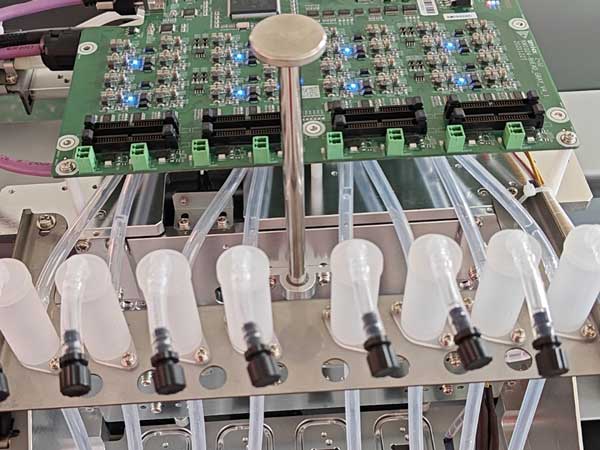

2. 8-heads base plate, which 4 or 8 print heads can be optional

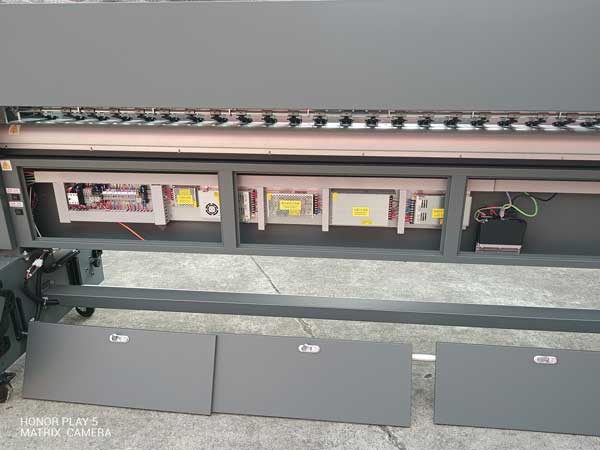

3. Clear and stable circuit system

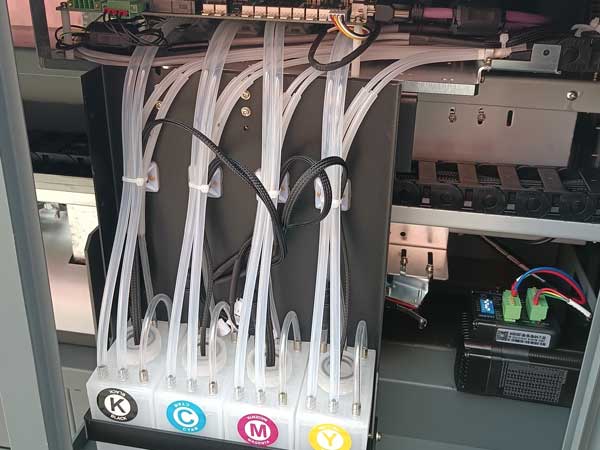

4. Sub-tank with protect, which make printing ink more fluent

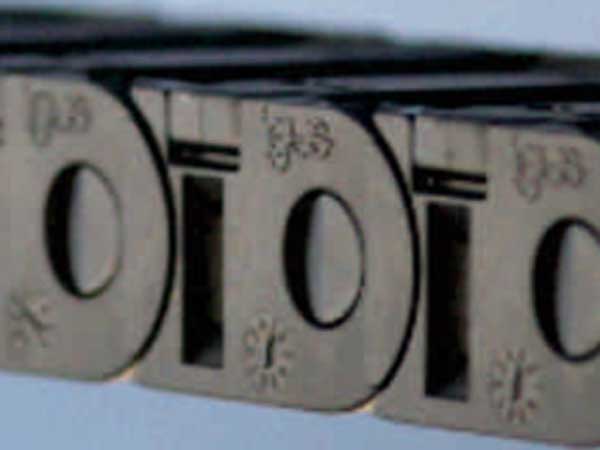

5. German Igus brand chain ,Protecting cables, quiet and light, not easy to break, long service life

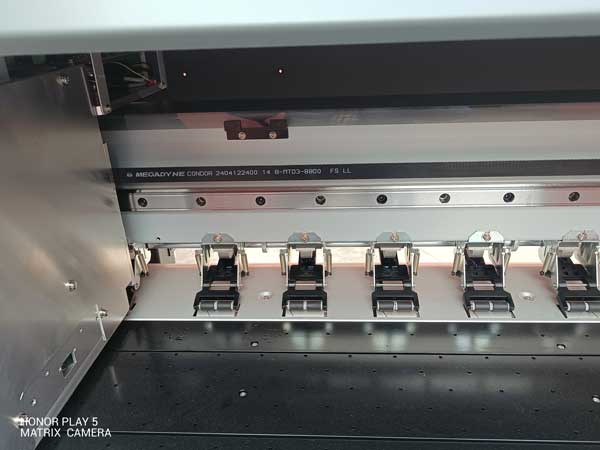

6. Widened pinch rollers,which prevent material from wrinkling and make the material feeding more even

Application

Large Format 3.2m Solvent Printer Flex Banner Printing Machine has been widely used for banner,sticker,vinyl,mesh,one way vision,photo paper, canvas etc various types of roll to roll outdoor printing material.
