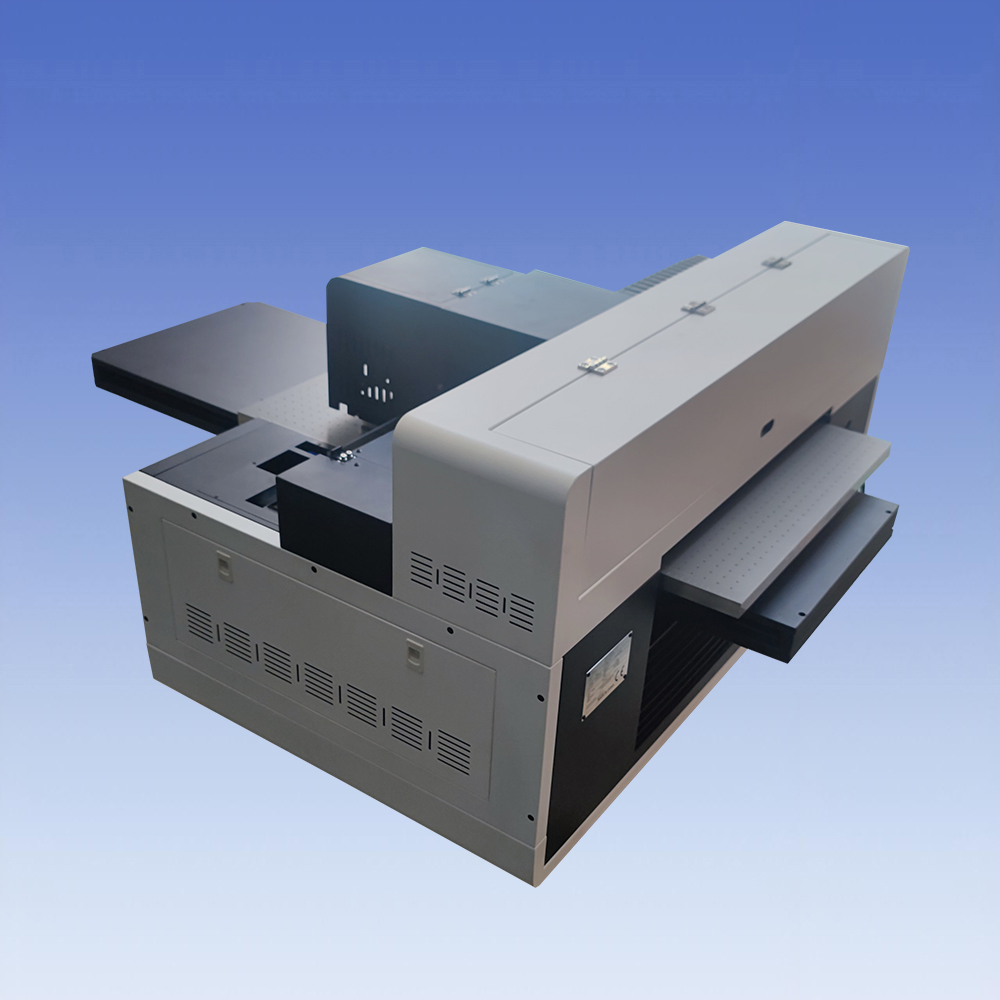

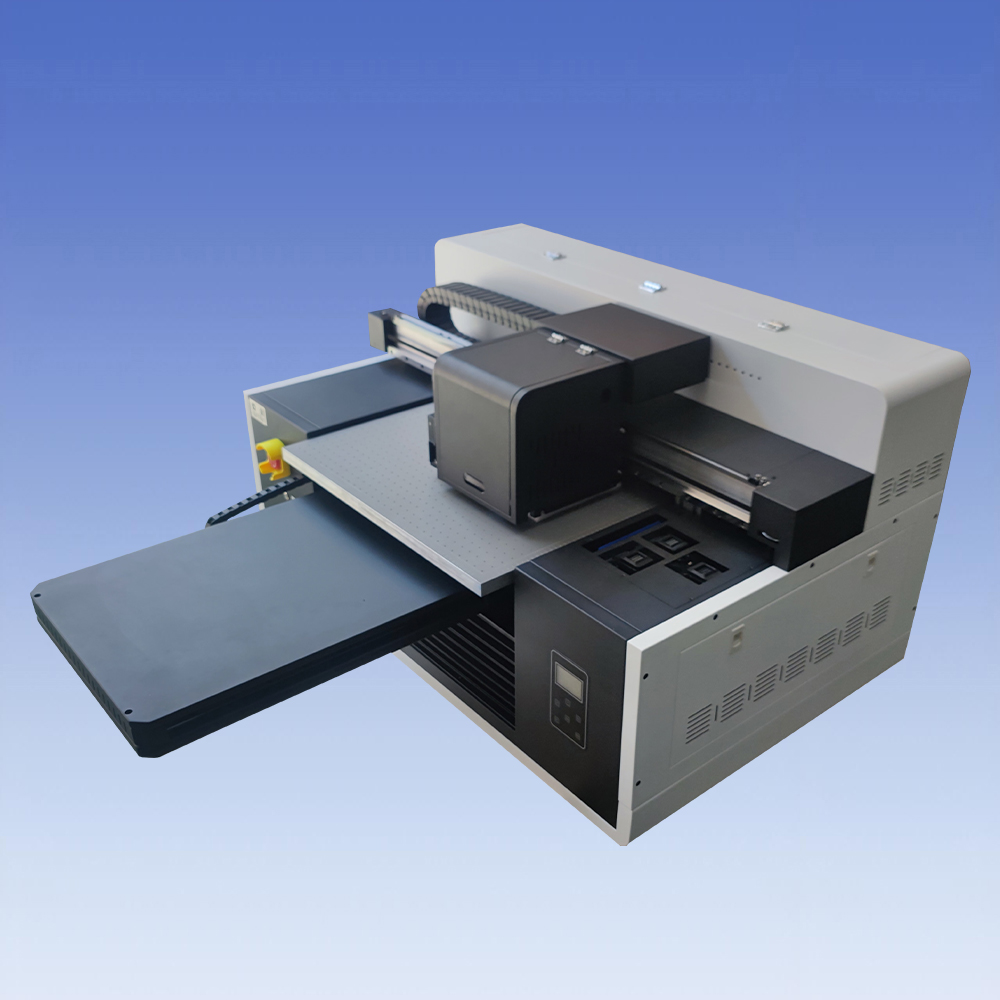

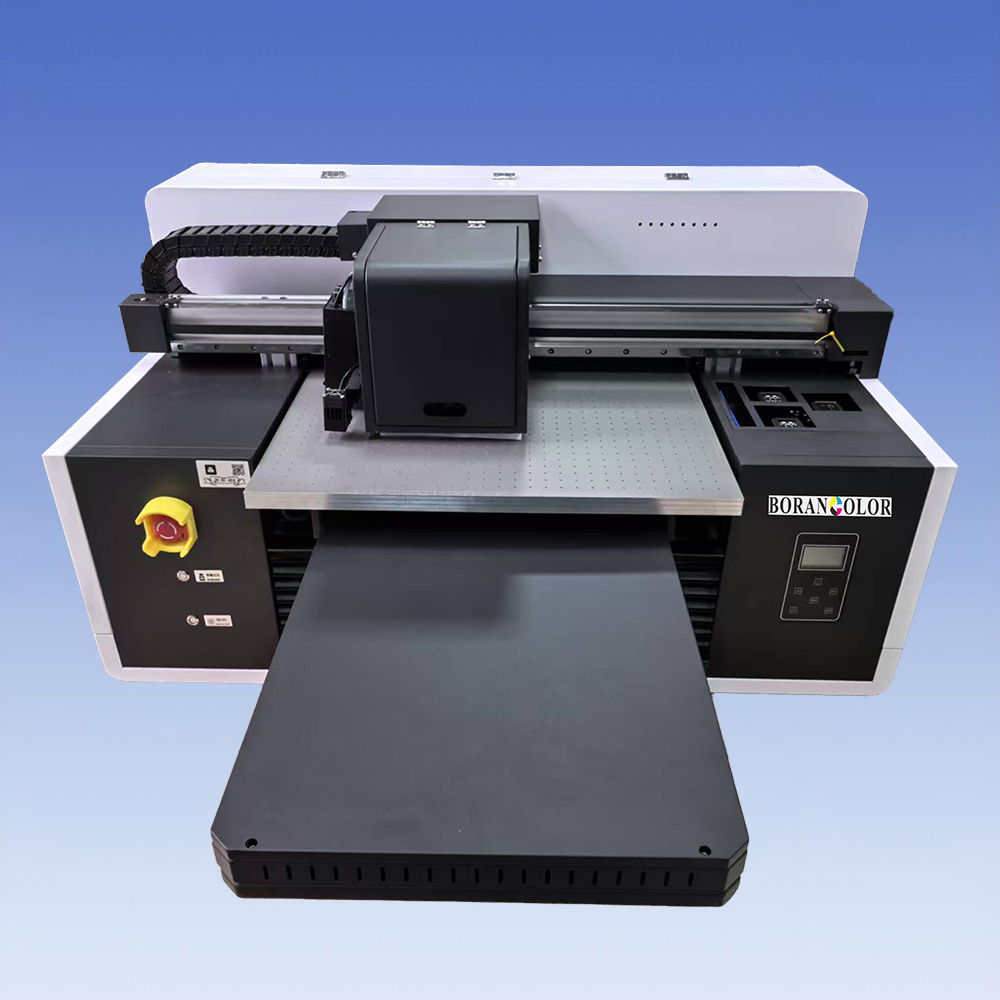

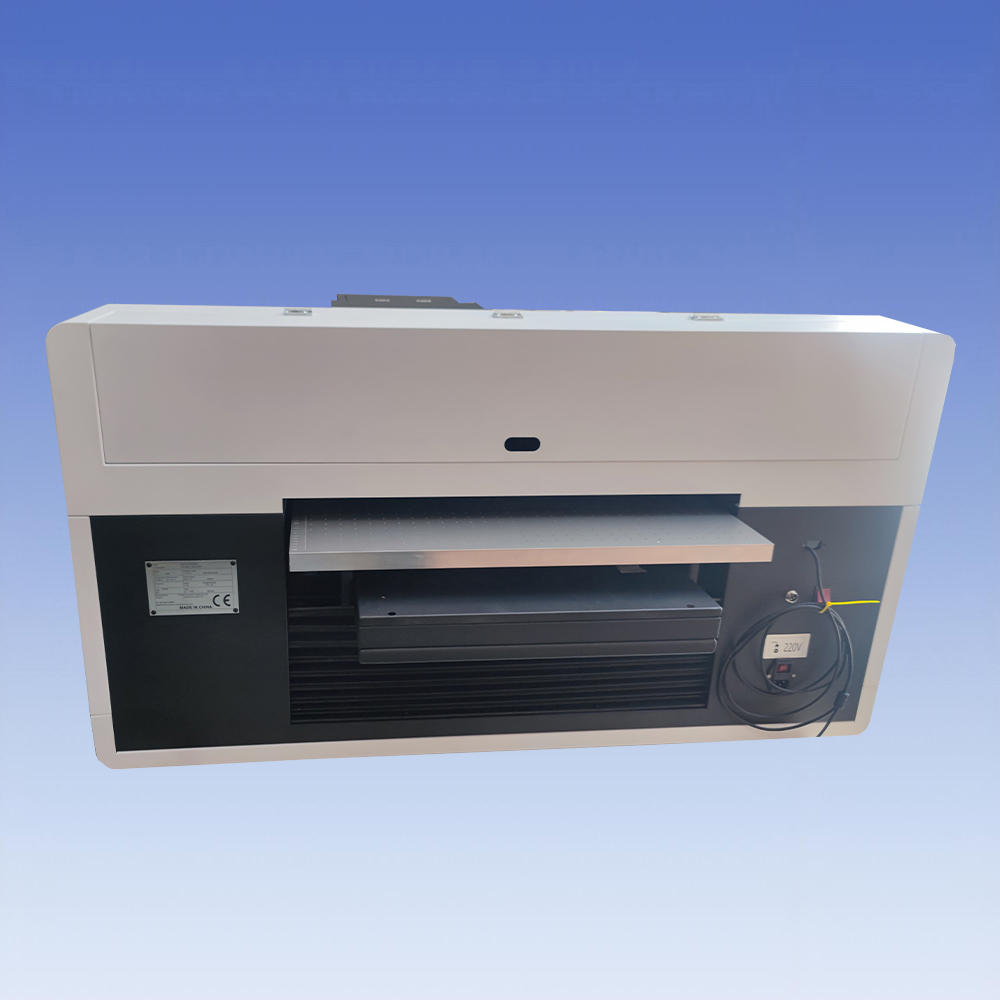

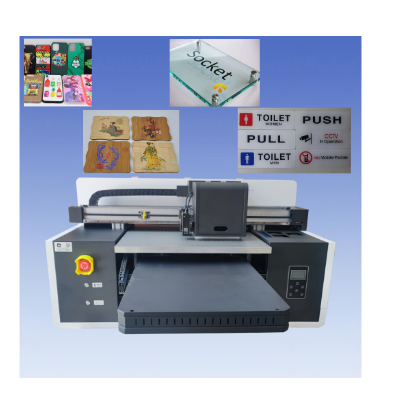

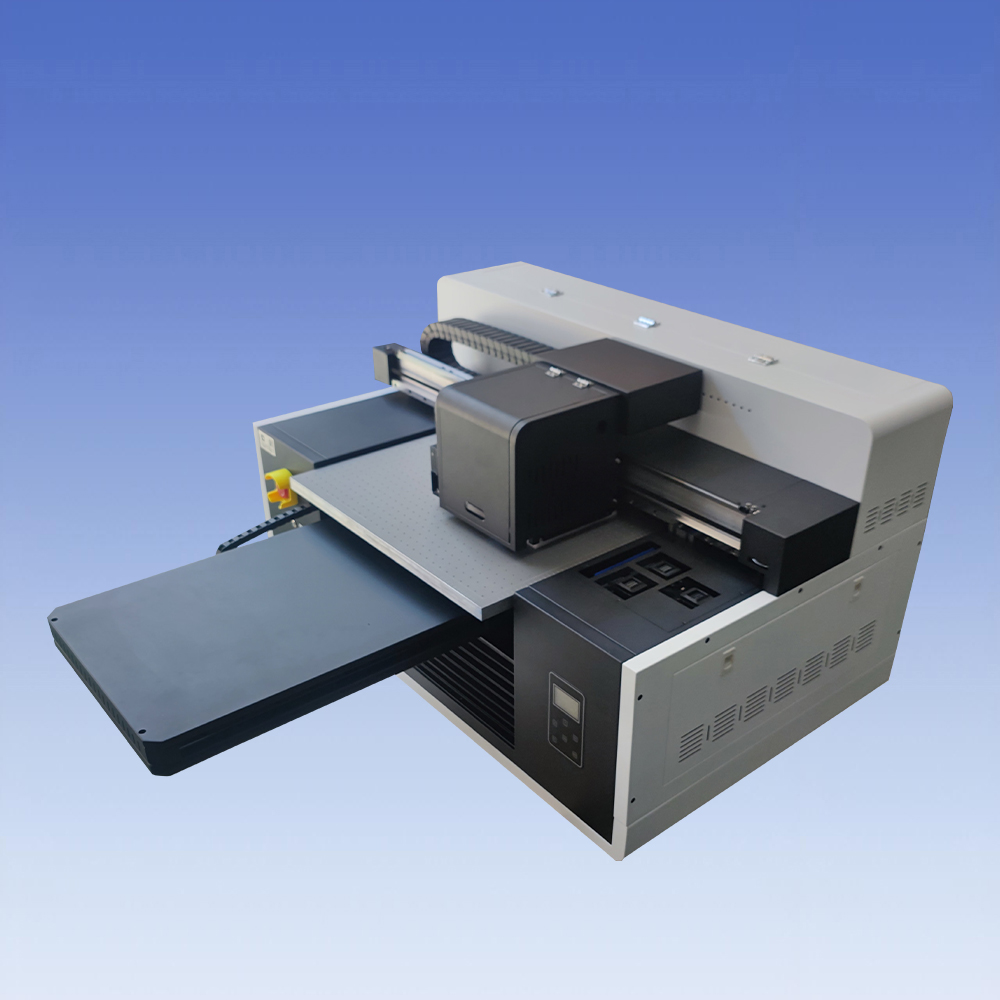

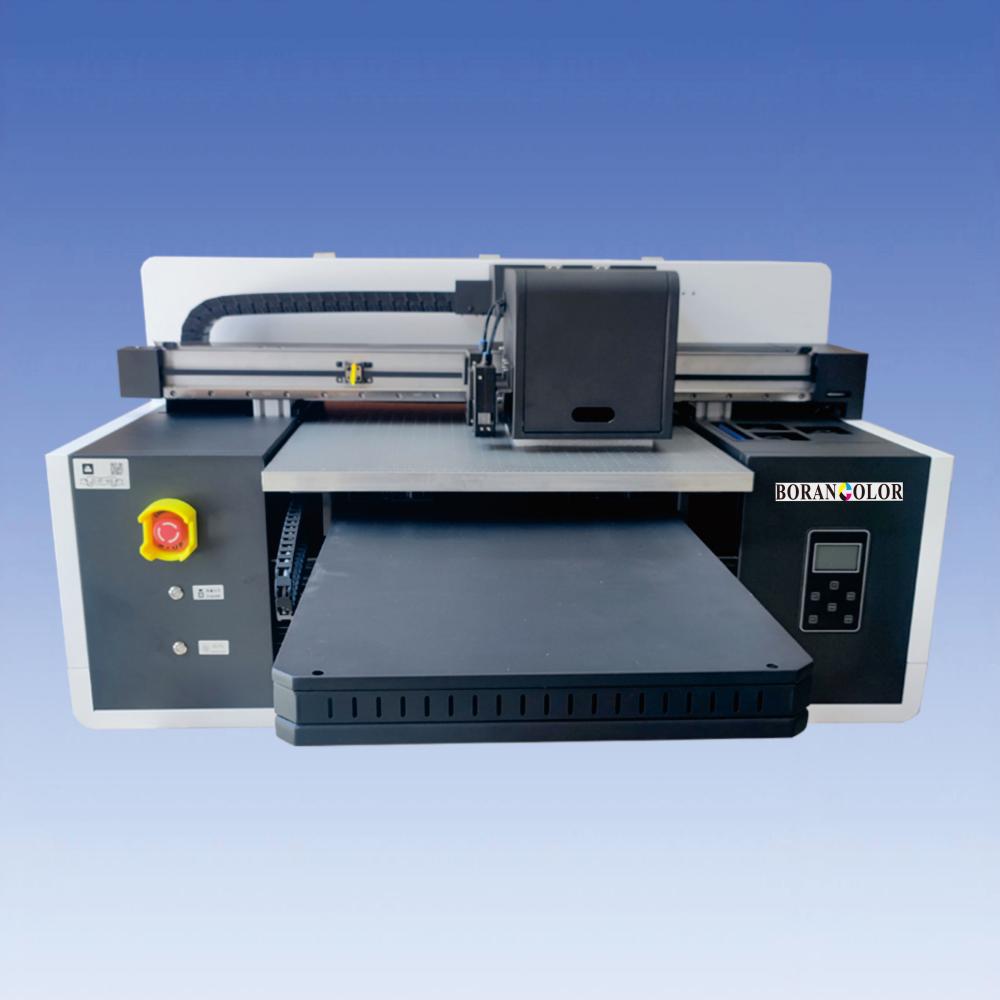

INKJET PRINTER: 6090 UV FLATBED PRINTER A1 size

INKJET PRINTER: 6090 UV FLATBED PRINTER A1 size

1. Printheads: 2-3pcs Epson i1600 Heads or i3200 Heads

2. Width: 60cm×90cm

3. Color:CMYK, W and Varnish

4. Rotary devicecan beequipped for cylinder printing.

5. Universal Printer: it can print almost all flat items , cylinder, but also can print on objects with irregular,uneven and curved surface

Technical Parameters

MODEL	BR-6090UV
PRINT SIZE	600mm×900mm
PRINT HEAD	Epson I1600 or I3200 heads
PRINTHEAD QUANTITY	2-3PCS
PRINTHEAD HEIGHT	150mm
LIFTING FUNCTION	Intelligent platform lifting
Ink supply system	Automatic ink supply
PRINT PRECISION &PRINT SPEED	4pass 720dpi×720dpi	4m²/h (SKETCH MODE)
	8pass 1440dpi×720dpi	2.5m²/h (PRODUCTION MODE)
	12pass 1440dpi×1440dpi	1m²/h (RESOLUTION MODE)
INK	UV ink
PRINT COLOR	CMYK/dual CMYK/CMYK+W/CMYK+W+V
PRINT WEIGHT	20KG
DRYING SYSTEM	UV led
RIP SOFTWARE	MAINTOP
COMPUTER OPERTIAON SYSTEM	Windows 7/Windows 10
FILE FORMAT	TIFF,PDF,JPEG etc.
POWER REQUIREMENT	AC220V(+10),50HZ~60HZ,100W
ENVIRONMENT	Temperature:20℃-28℃，Humidity:40%-60%,
MACHINE SIZE	L×W×H(1210×1500×695)MM
PACKAGE SIZE	L×W×H(1610×1320×860)MM

1. All aluminum fine-milling beam,Printing accuracy is more stable

2.With thickened aluminum suction platform,Corrosion resistance,not easy to deform

3.The Y-axis makes the combination of two guides more accurate

4.UV LED curing system,curing degree is better and more stable

5.Automatic height measurement function,Fast and efficient

6.Lack of ink alarm system,filling ink without stopping

7.Two or three print heads configuration,White/color/varnish can be inking simultaneously

8.Rotary device can be optional for printing cylinder objects

9.Printable DTF crystal label.
