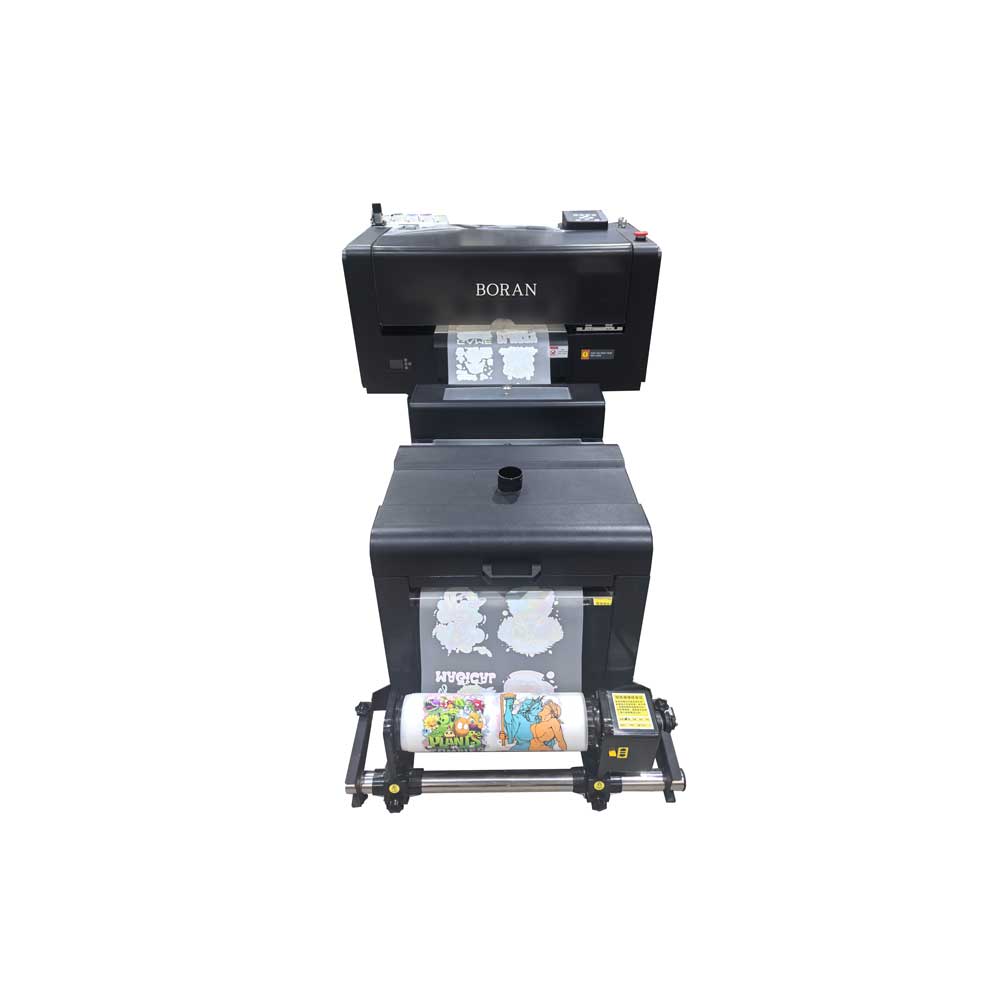

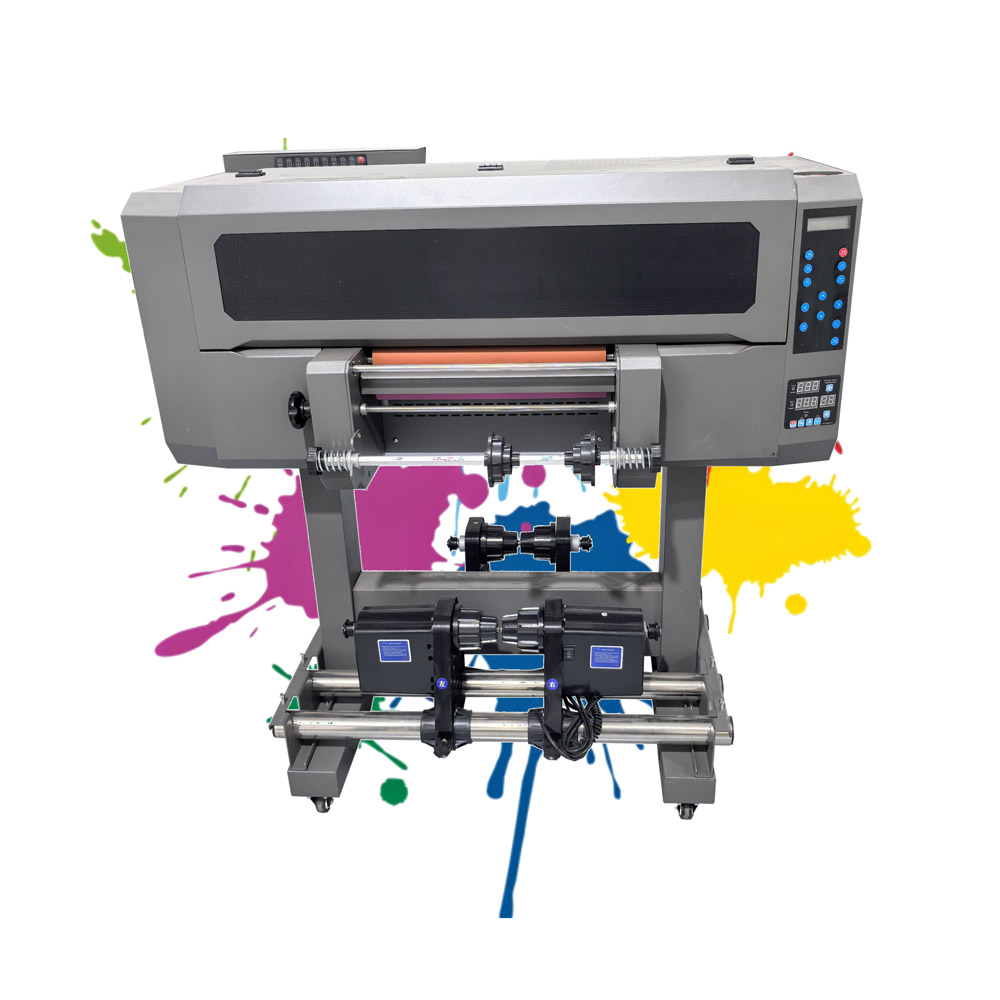

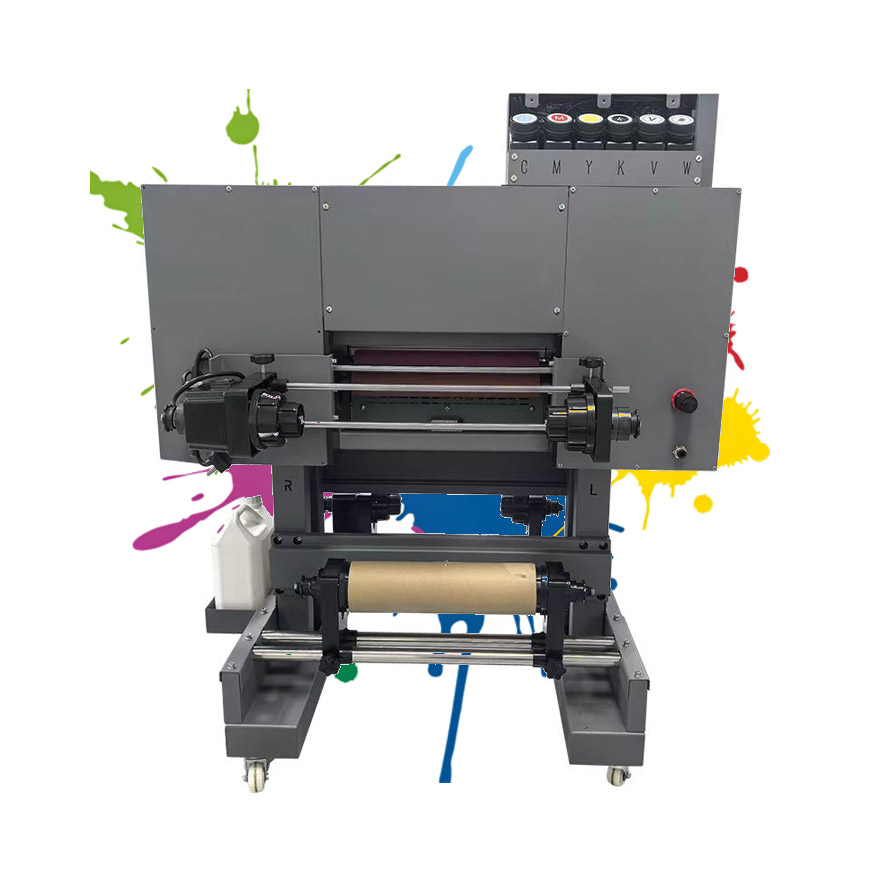

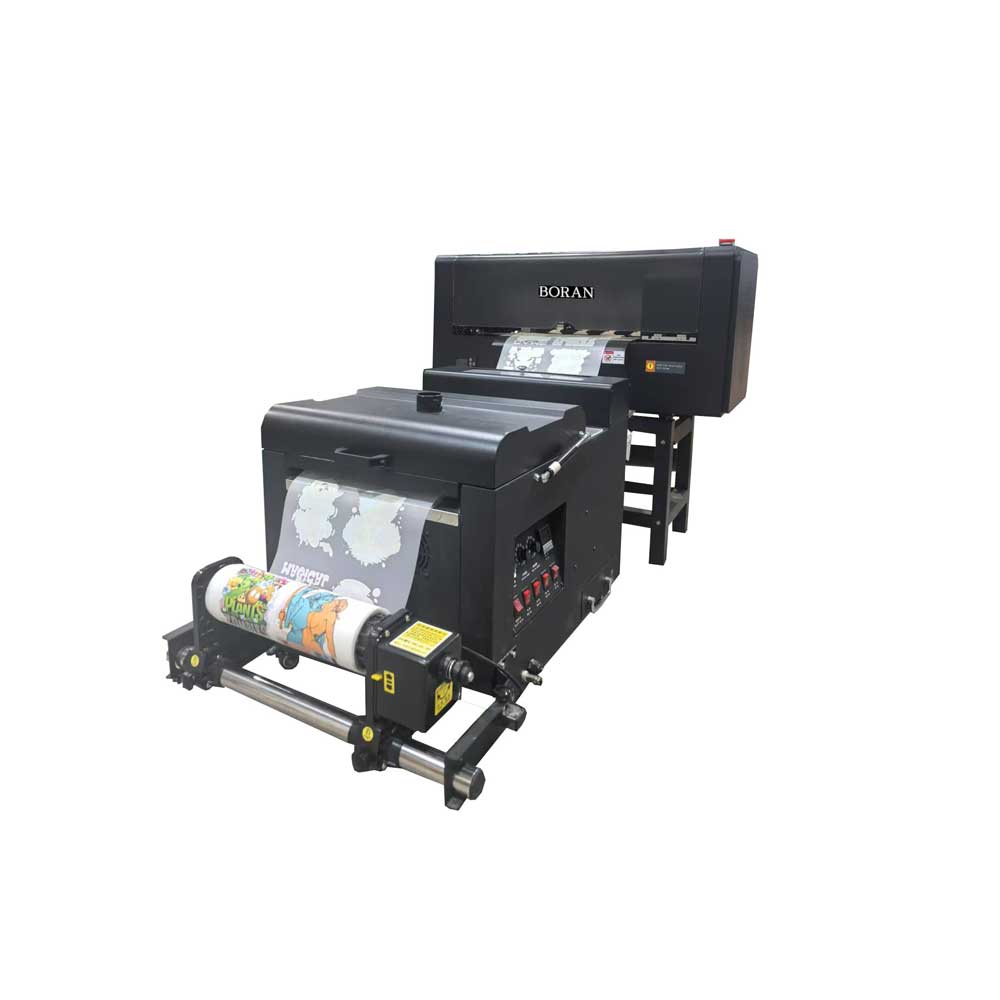

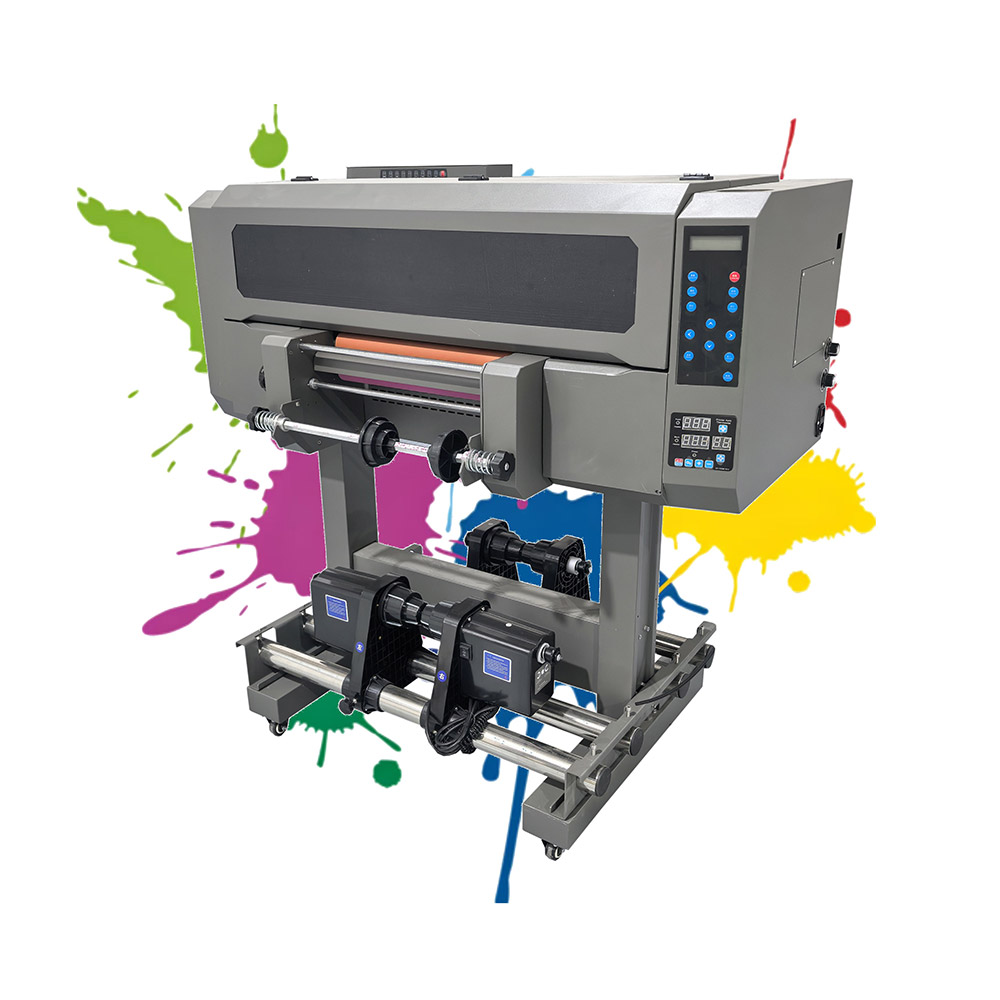

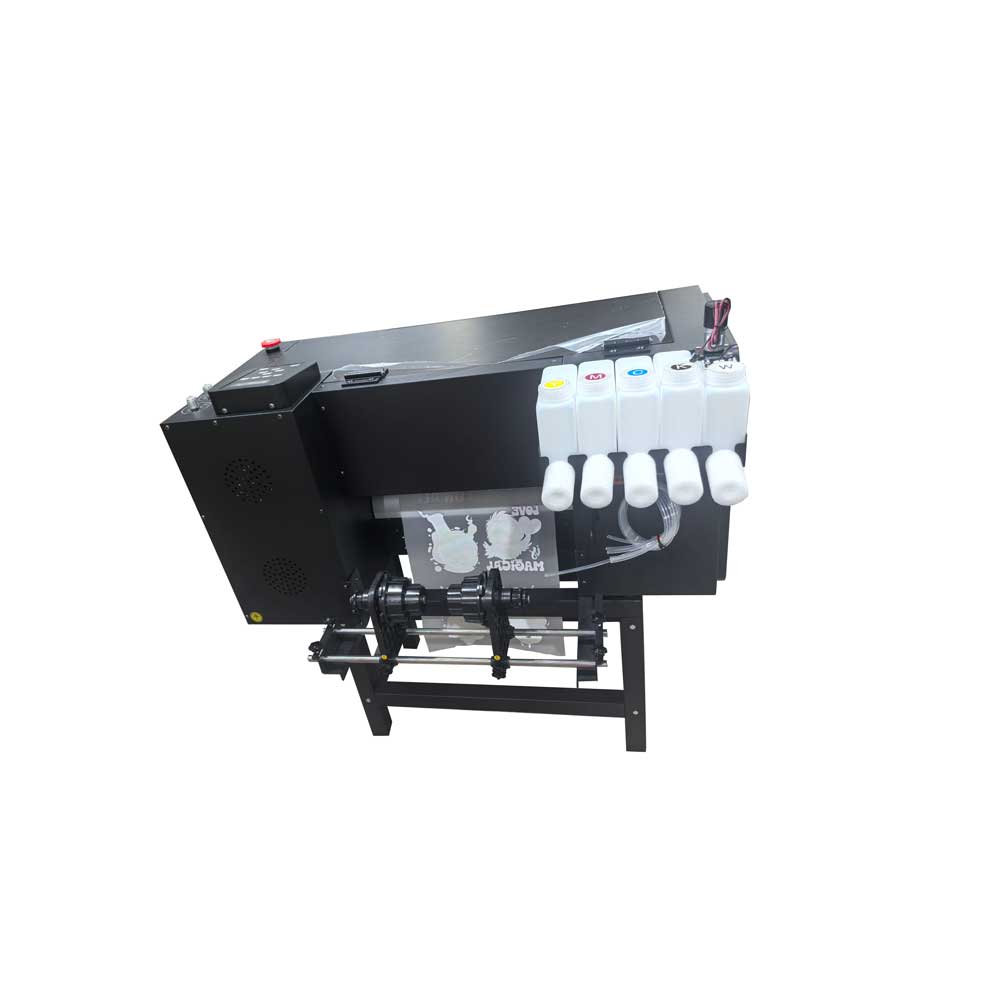

A3 size 30cm 2 in 1 UV DTF Printer with Laminator

Print heads: Epson XP600/TX800/I1600 /I3200 (3pcs)
Max print width:32cm
Color: CMYK+white+Varnish
Speed: 1-5㎡/h
Application: A3 size 30cm 2 in 1 UV DTF printer with laminator prints on film sticker and it Can be widely transferred onto various substrates, including gift boxes, metal cases, promotional products, stainless steel bottles, wood, ceramic, glass, bottles, leather, mugs, earplug cases, headphones etc.

Product Introduction

A3 size 30cm 2 in 1 UV DTF printer with laminator is direct to film sticker printing and laminating all in one together, capable of producing high-quality, vibrant color prints on the film sticker. These prints can be transferred onto various substrates, including gift boxes, metal cases, promotional products, stainless steel bottles, wood, ceramic, glass, bottles, leather, mugs, earplug cases, headphones etc.

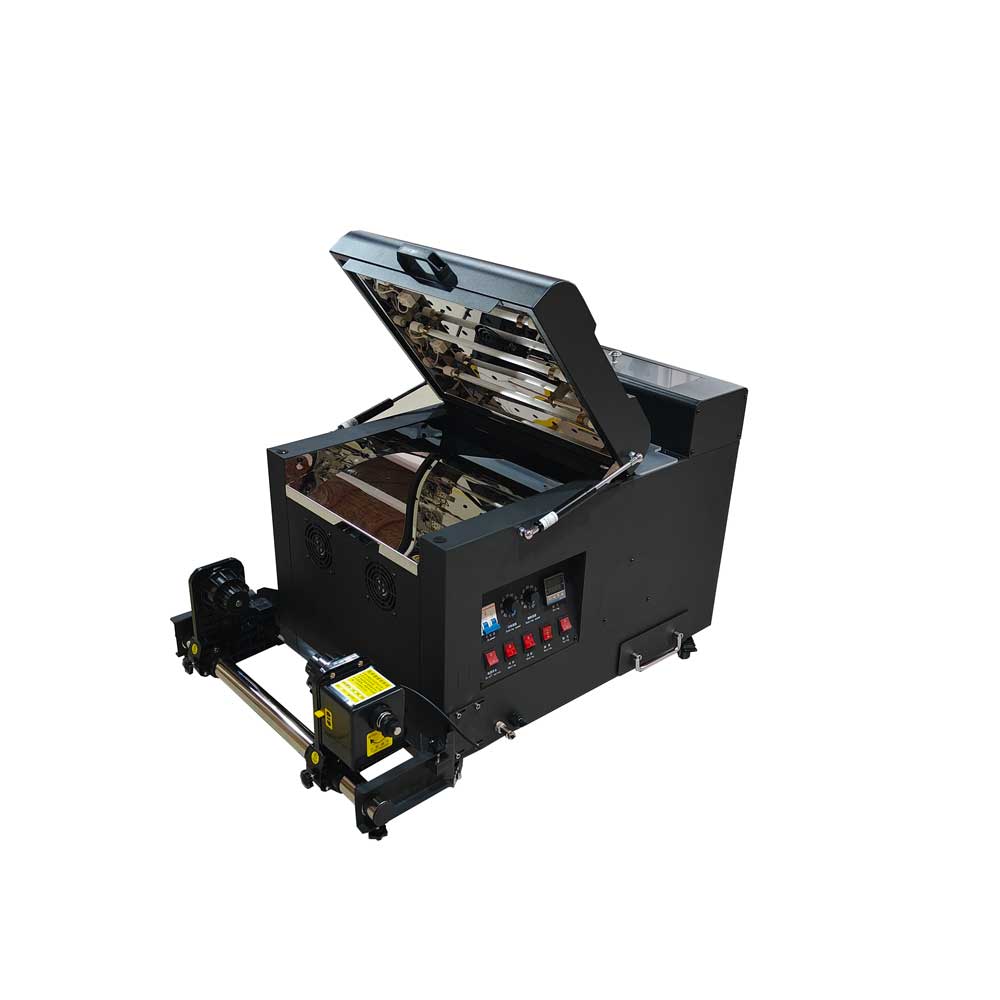

dtf-printer-a3-with-shaker-dtf-inkjet-printer

010203040506070809101112

Technicial Parameters

Model	BR-BF300
Print Width (buffeting width)	320MM
Printhead	Epson XP600/TX800/i1600/i3200 heads
Pinthead Quantity	3 pcs
Print Media	AB film, hot stamping crystal label
Ink	UV ink
Color	CMYK+W+V
Color Gamut	ICC profile
Ink supply system	500ML ink bottle with alarm function+white ink agitate and circulation
Speed	TX800/XP600 I1600 I3200 7201200dpi(4Pass) 2.4m²/h 4m²/h 5.5m²/h 7201800dpi(6Pass) 2m²/h 2.3m²/h 4m²/h 720*2400dpi(8Pass) 1m²/h 1.3m²/h 3m²/h
Print Media	AB film, hot stamping crystal label
Heating System	UV led heating (air cooling)
Roll up function	printing and laminating integrated
Rip Software	RIIN
Operation System	Windows 7/ Windows 10
Power Supply	AC220V/110V(±5%),50HZ/60HZ 1.8KW
File Format	TIFF,JPEG，PDF
Environment	Humidity:40%-60%, Temperature:18℃-28℃
Machine Size	LWH(112001130730mm)MM 110KG
Package Size	LWH(1220850800)MM (12007501300)MM

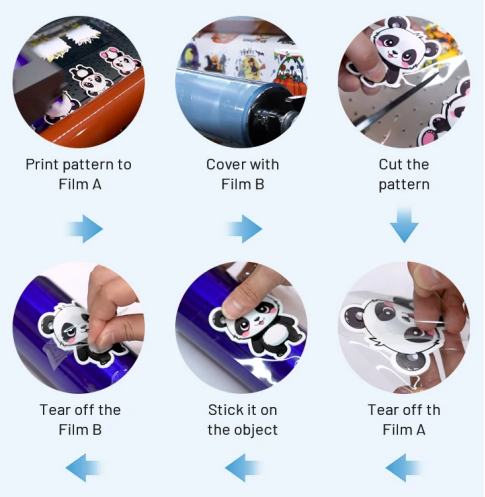

Working Process

Product Advantages

1.The whole machine structure adopts aluminum profile machining to ensure machine accuracy

2.The X and Y axes adopt servo integrated motors and add reducers

3.front and rear air pressure of the whole machine is maintained in precise steps

4.Integration of printing and laminating . saving costing and improving the job efficiency.

5.Integration of printing software and Sharp Image

6.Air cooled UV lamp with separate power adjustment

7.Machine power partition control

8.Paper shortage detection, can avoid paper shortage impact, transparent white background can be used

9.White, color, and glossy oil all come out together

10.Small footprint, detachable for desktop use, ensuring printing quality, running quietly without noise

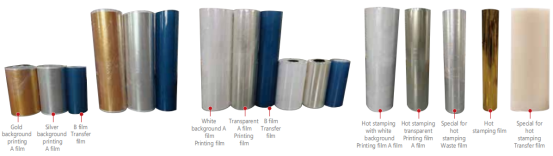

Different Crystal Film Stcikers As Below Can Be Optional For Different Effect

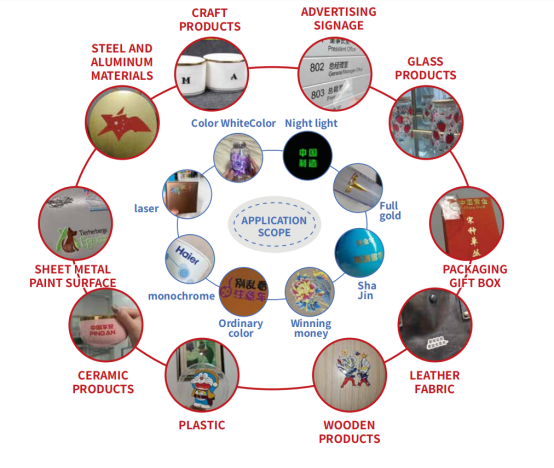

Application Scope
