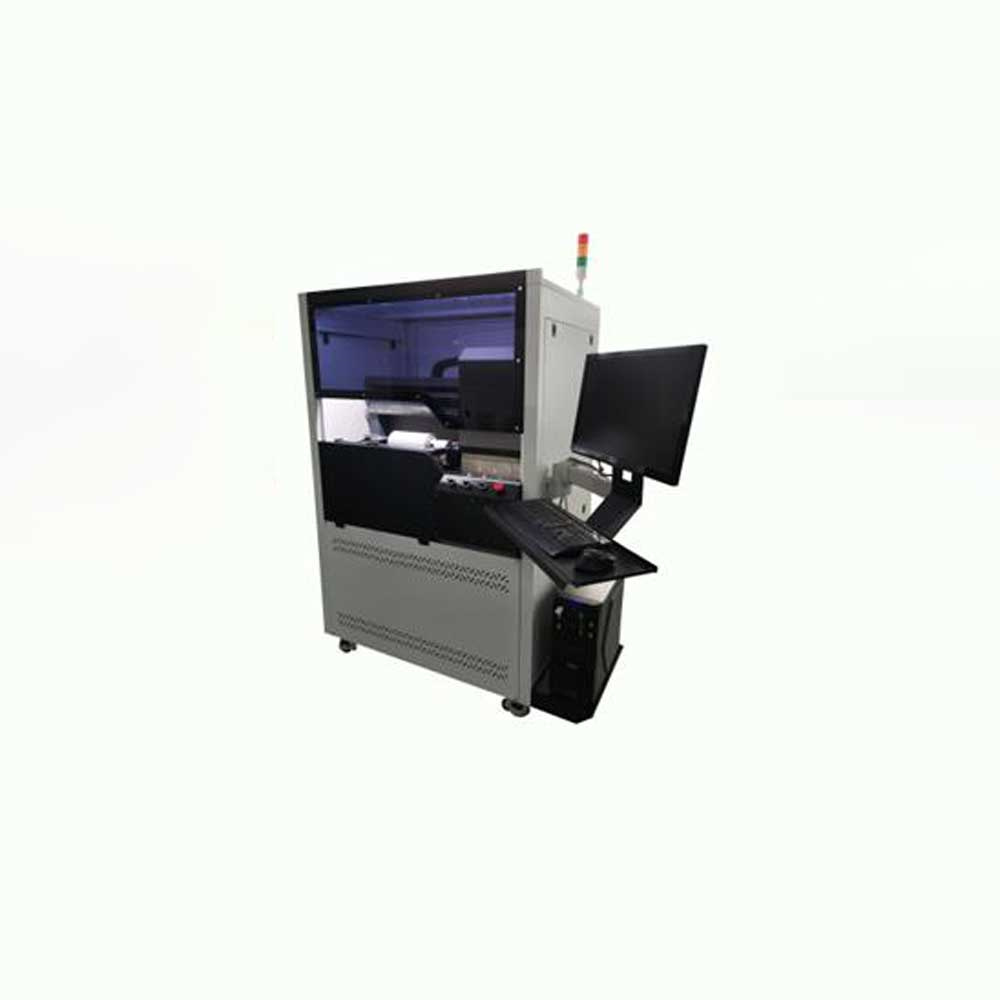

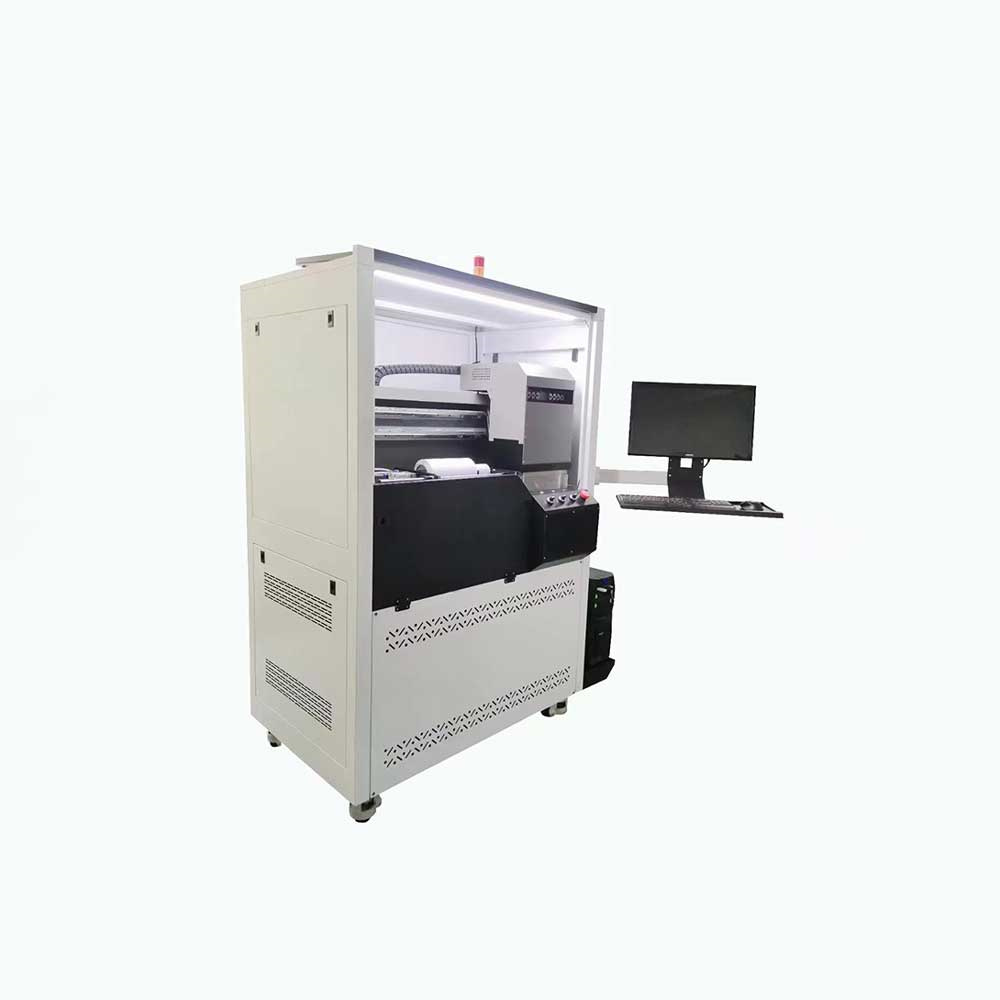

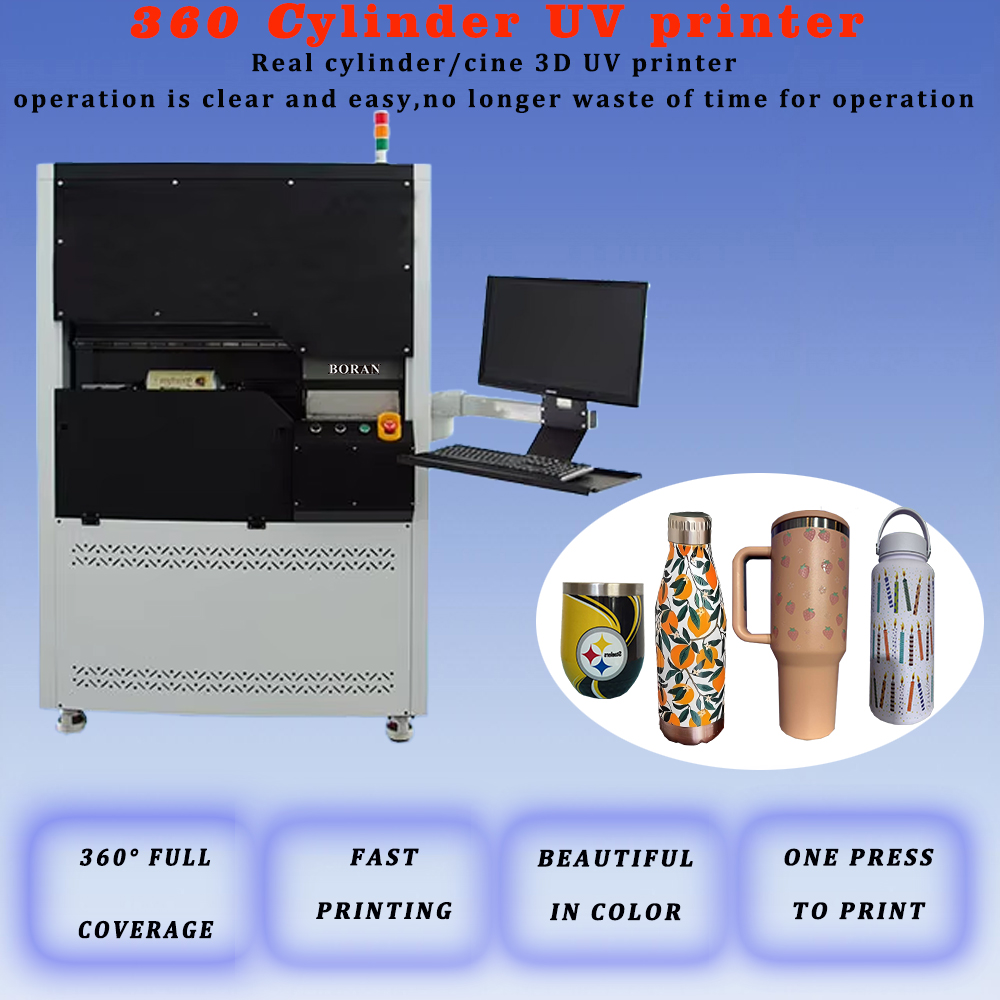

360 Cylinder UV Printer(Cylinder &Taper Printer)

360 Cylinder UV printers are designed for straight wall, cone and other cylindricalprinting needs. Relying on the unique software and the organic combination ofprofessional cone printing parts, 360UV printer can achieve 360 degrees of seamlessrotation printing, It provides the better printing effect with clear and delicate qualityhighly restored color for a variety of materials and shapes of cylinder.360 UV printers have been widely used in all kinds of glass, ceramic, metal, plasticproducts : Include all kinds of stainless steel bottles,tumbers, glass cups, thermos,cans, lipstick tubes and other products.

    Contact us

    Technicial Parameters

    MODEL BR－360UV
    PRINT DIAMETER 50MM－180MM
    DROP 0－5 DEGREE（LENGTH）
    PRINT LENGTH 280MM
    PRINT SPEED 30S-60s/pcs（Based on 3.14 inch (80 mm) image CMYK）
    PRINTWAY ROTARY TYPE,CMYK+WHITE+VARNISH
    PRINTHEAD EPSON XP600/I1600 HEADS OR RICOH G5I HEADS
    PRINT RESOULTION 720*720DPI (XP600)        720*1800DPI (RCOH G5i)
    PRINT COLOR K、C、M、Y、W，VARNISH
    SOFTWARE PP
    PICTURE FORMAT TIFF,JPG,EPS,PDF,PNG,AI,PSD
    UV INK UV INK
    VOLTAGE 50HZ AC220/110±>10A CONNECT EARTHLINE
    TEMPERATURE /HUMIDITY TEMPERATURE：20-30℃  HUMIDITY：30%-60%
    MACHINE WEIGHT 200KG

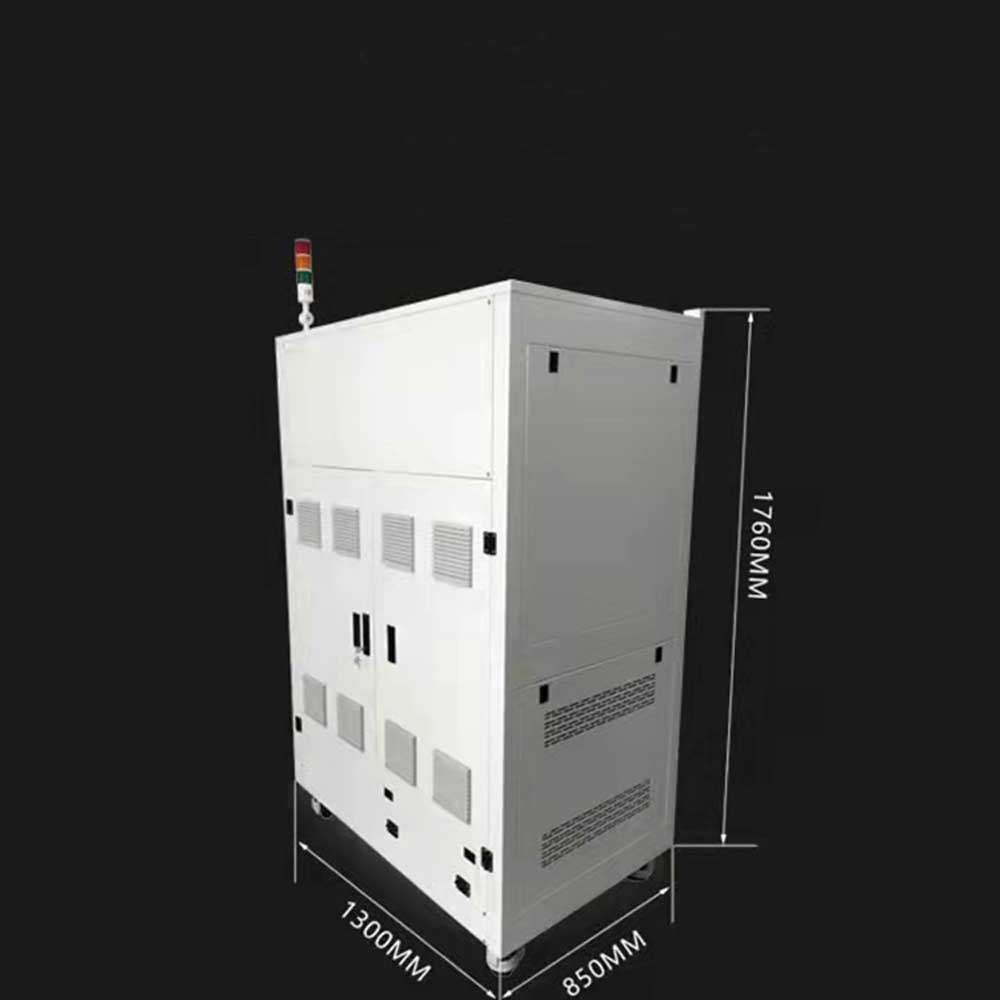

    MACHINE SIZE 1300MM*850MM*1760MM
    PRINT MATERIAL DYLINSER,CONE ETC.

    Features

    • 360°seamless rotation printing

      It can achieve seamless packaging printing around 360° in a cylinder.

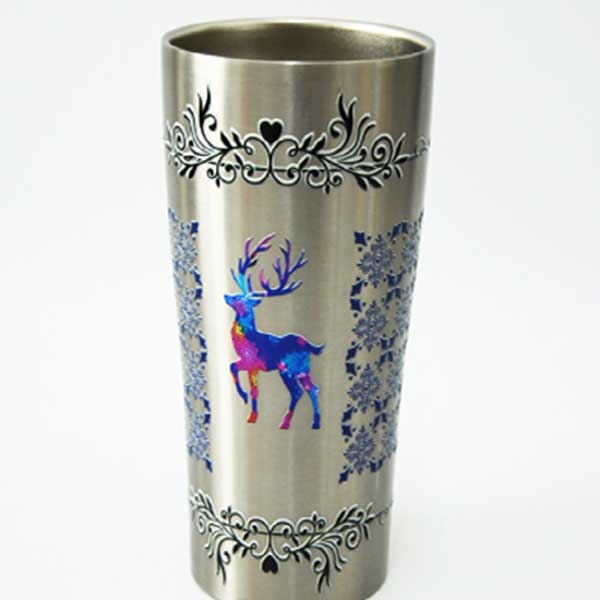

    • tumbers-printed-by-tumber-printing-machine

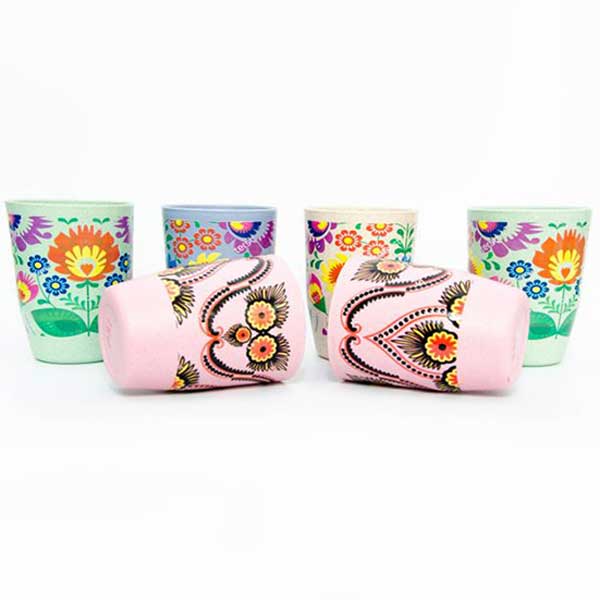

    • printed-by-uv-cup-printer

    • Used for cylindrical and conical dylindericalobjects

      Used for all kinds of rectangular and conical cylindrical object uv printing, easy to adjust the printina Anale and print cvlinder obiects quicklv.

    Applications

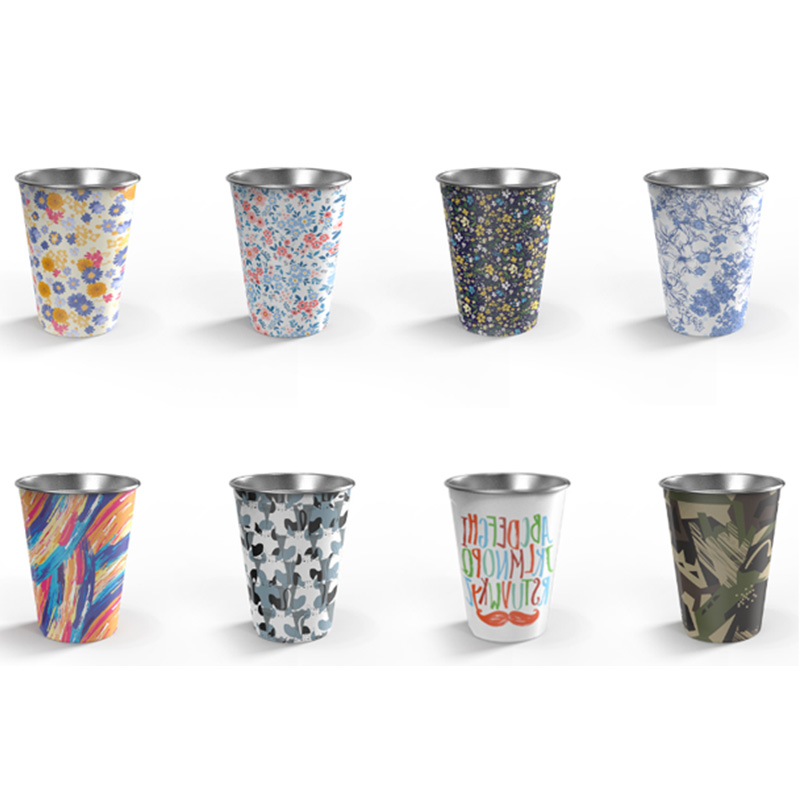

    • all kinds of cups

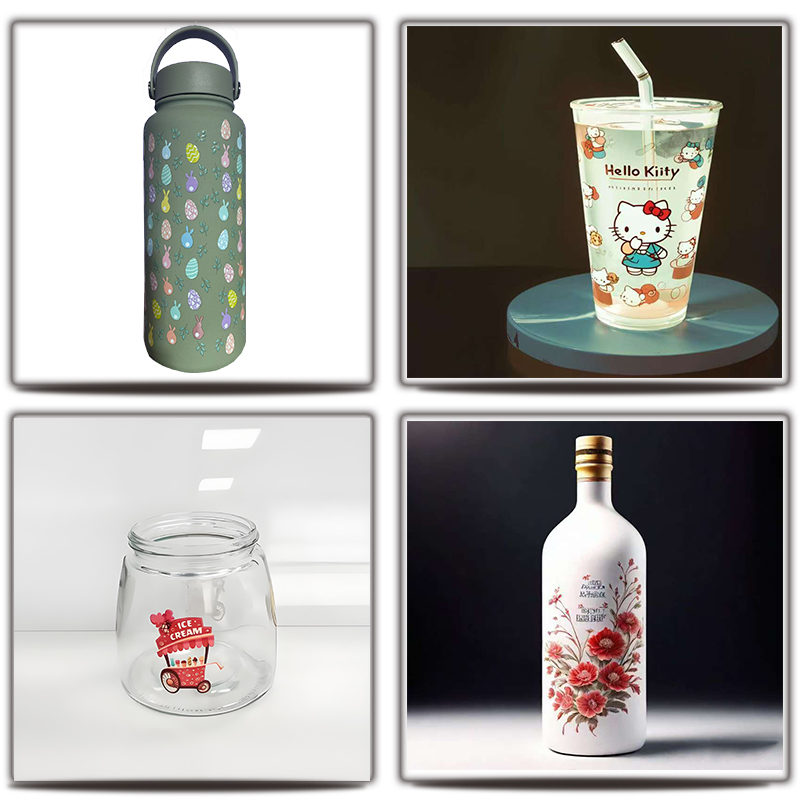

      Print on all kinds of vessels of drinks and wine，such as：stainless steel vacuum cups，tumbers,glass cups, plastic drink bottles, sports kettles, vase etc.

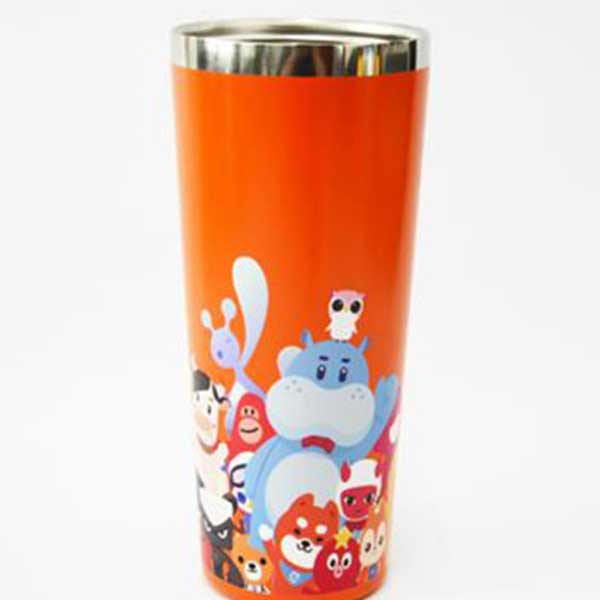

    • printed-by-tumber-printer

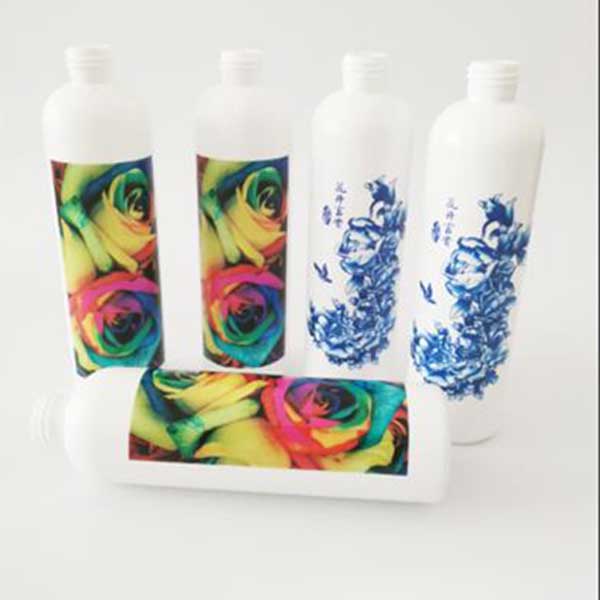

    • wine-bottles-printede-by-bottle-printer-machine

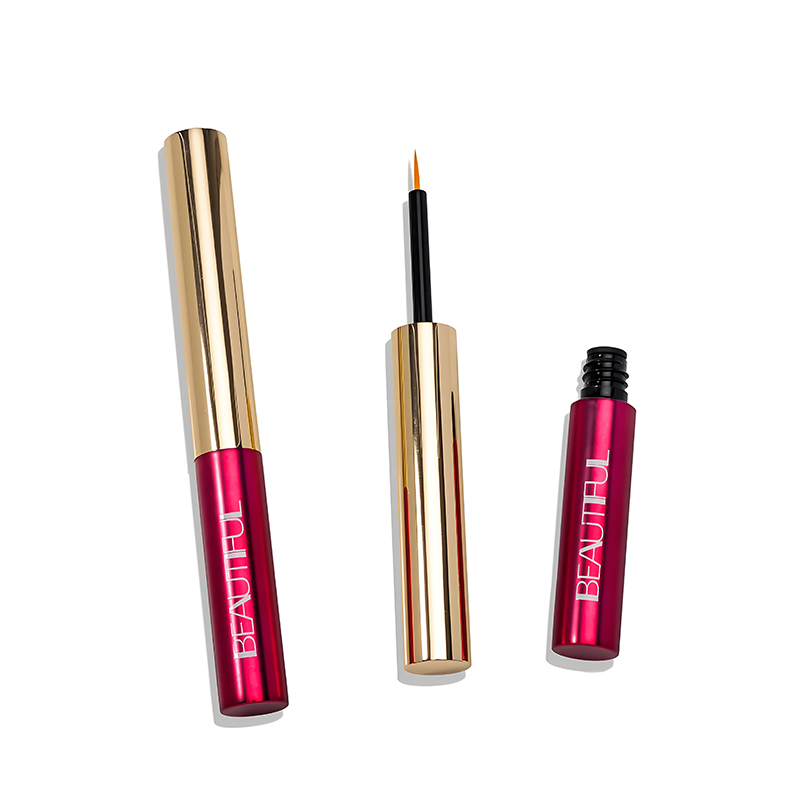

    • cosmetic packaging containers

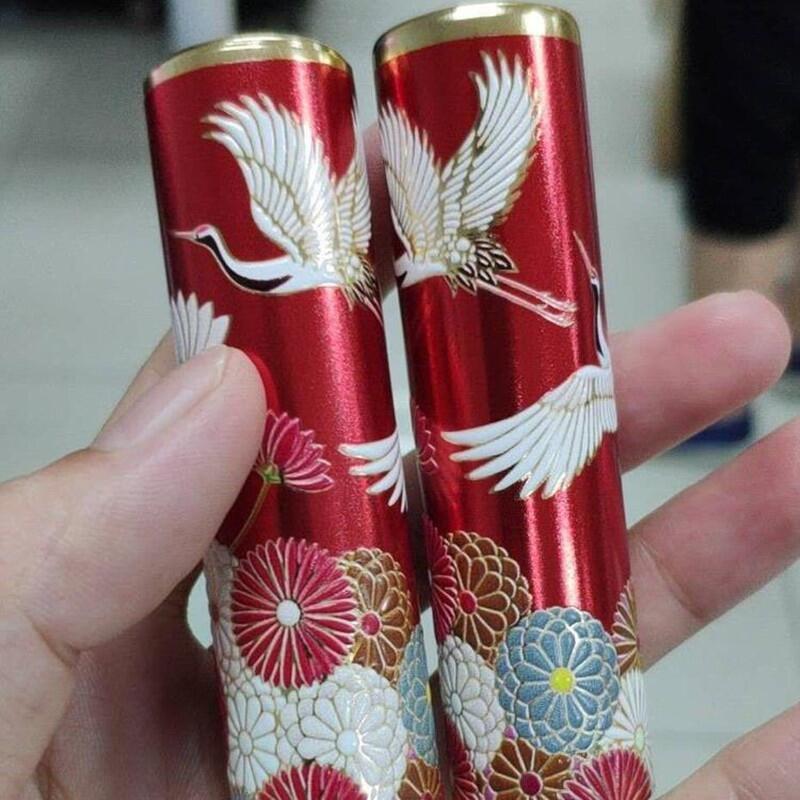

      Print on all kinds of cylindrical cosmetic packaging ，such as glass emulsion bottles , spray bottles , aluminum bottles . lipstick tubes etc.

    • Cylindrical apparatus for industry

      Glue aluminum tube and other industrial cylinder parts 360-degree color label printing.

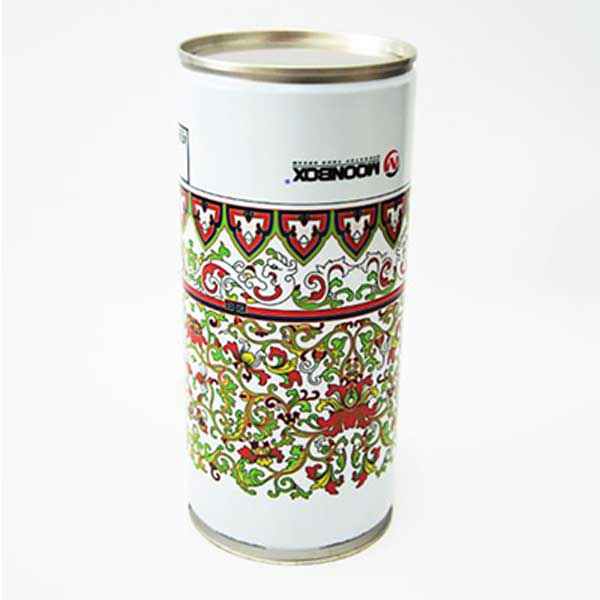

    • printed-by-can-printing-machine
