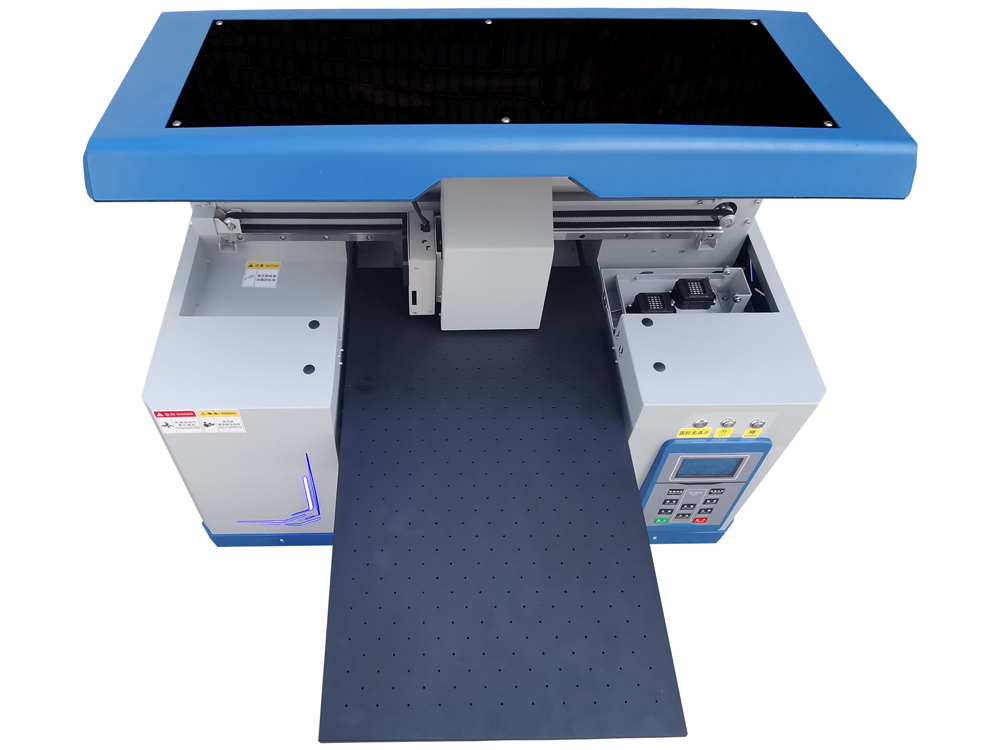

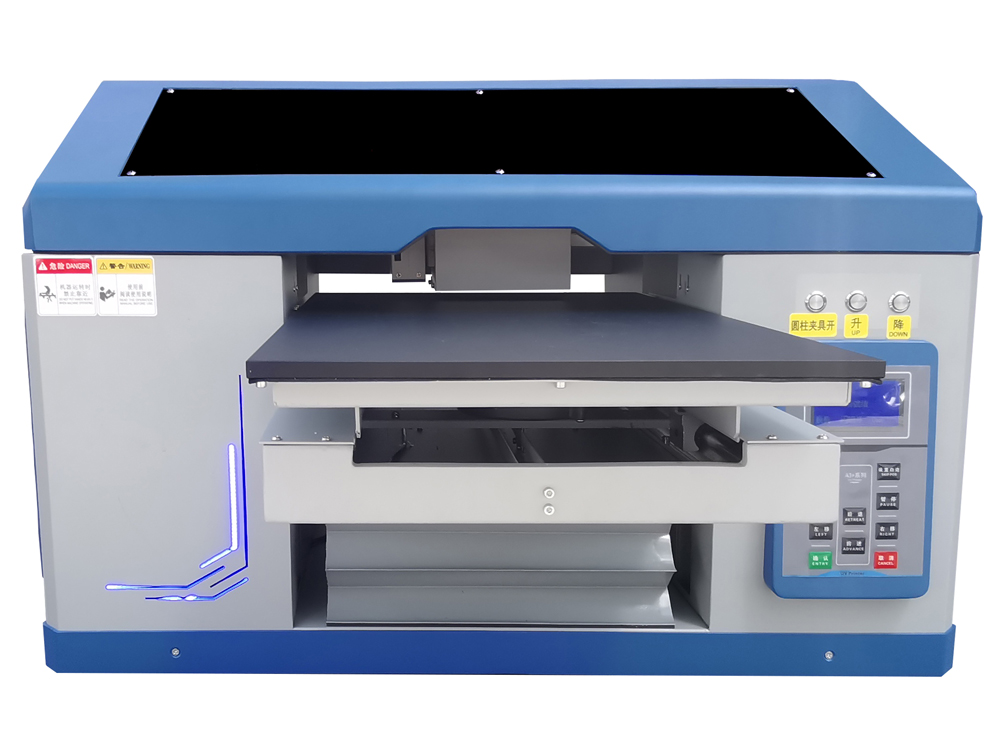

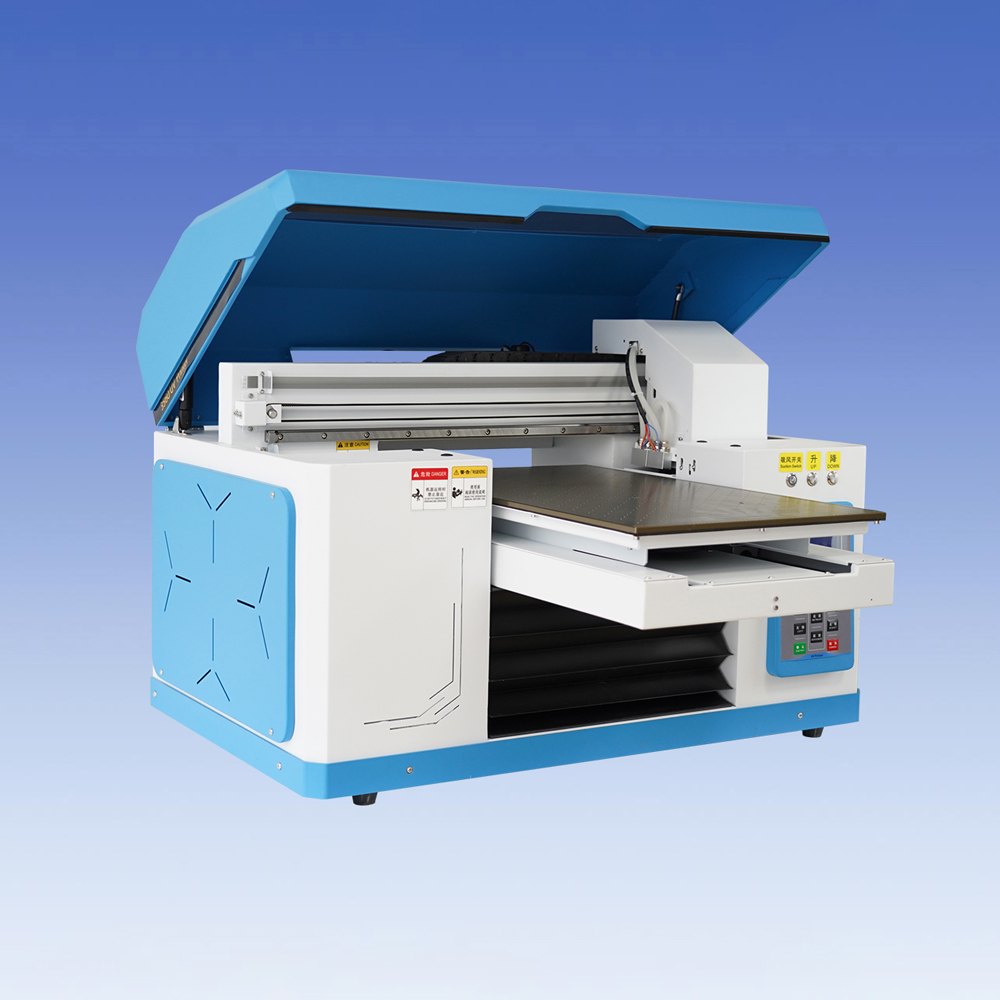

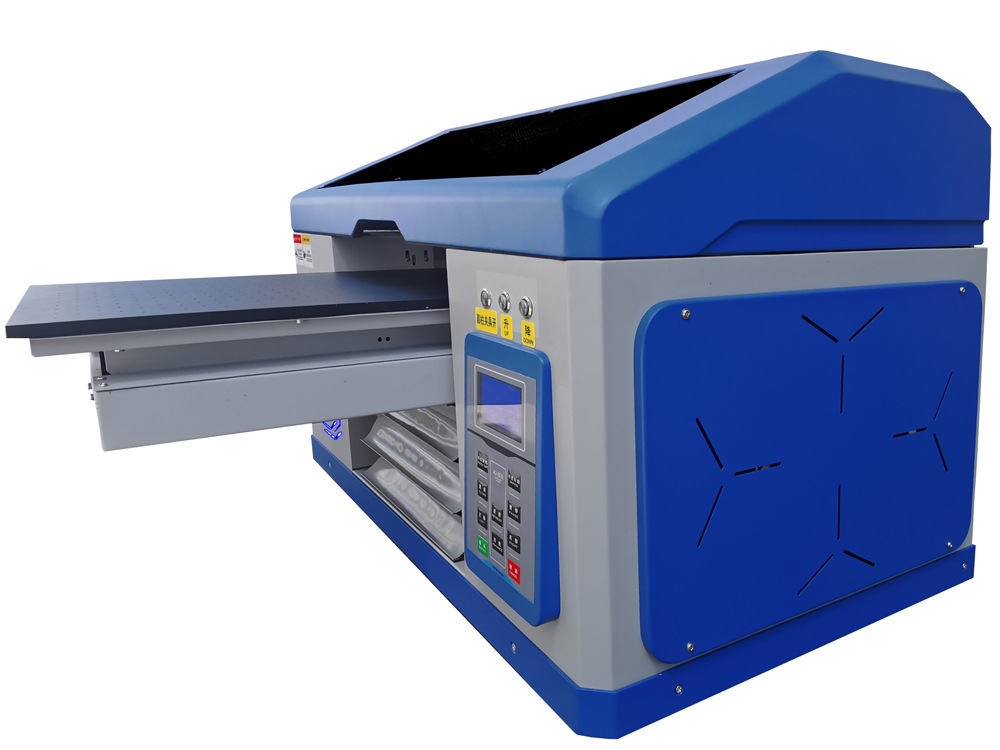

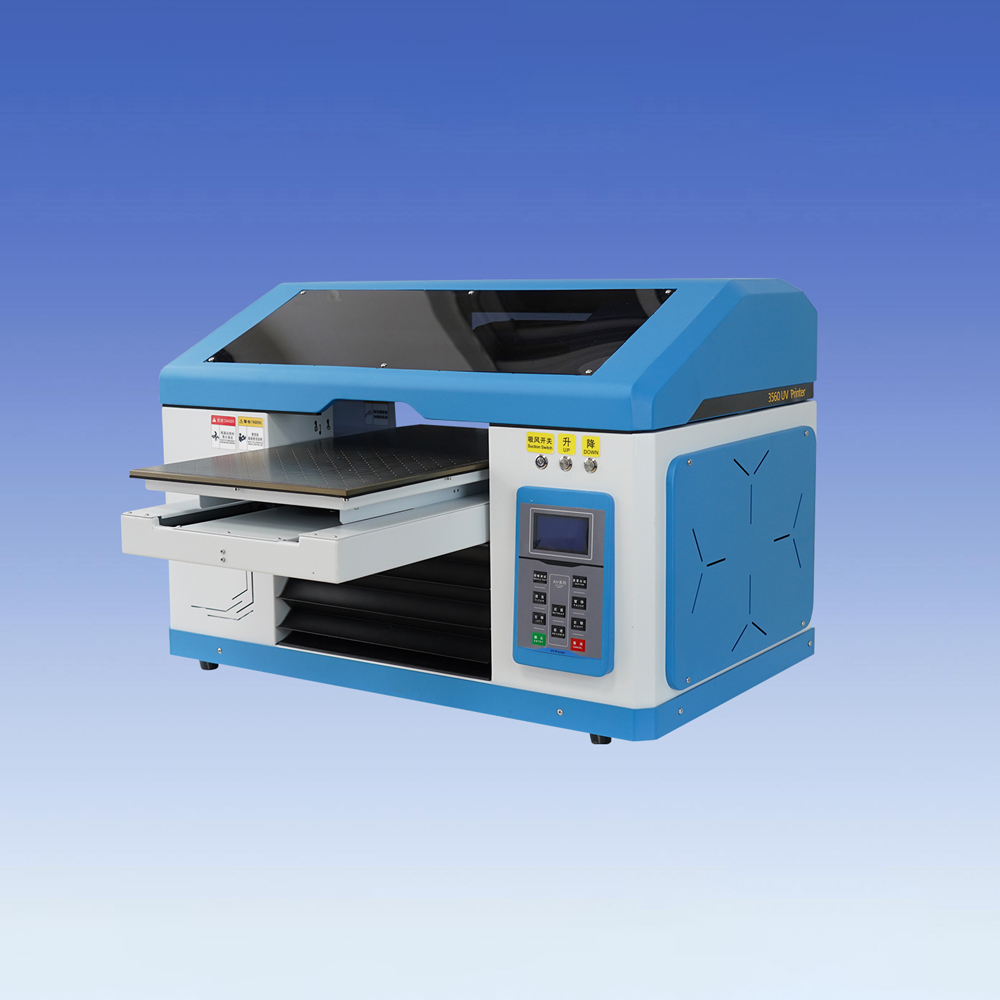

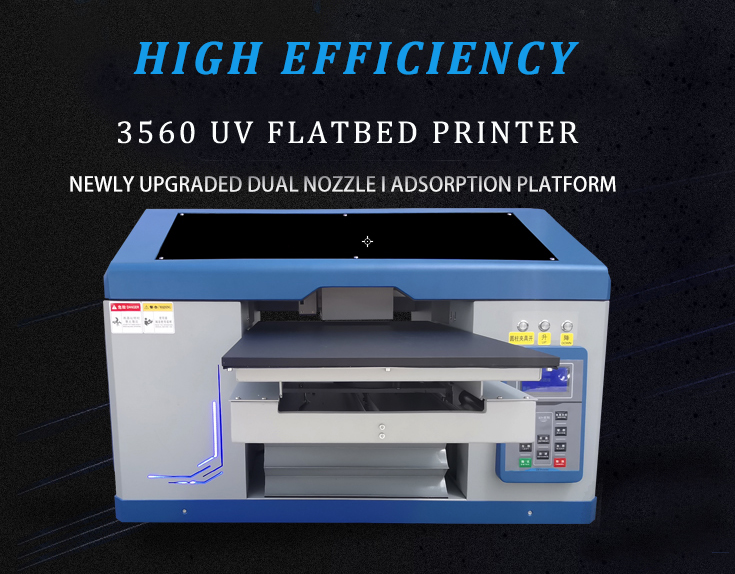

3560 UV FLATBED PRINTER A2 Size

3560 UV FLATBED PRINTER A2 size
1.Printheads: 2pcs TX800 Heads
2. Width: 35cm×60cm
3. Color: CMYK, W and Varnish
4. Rotary device can be equipped;

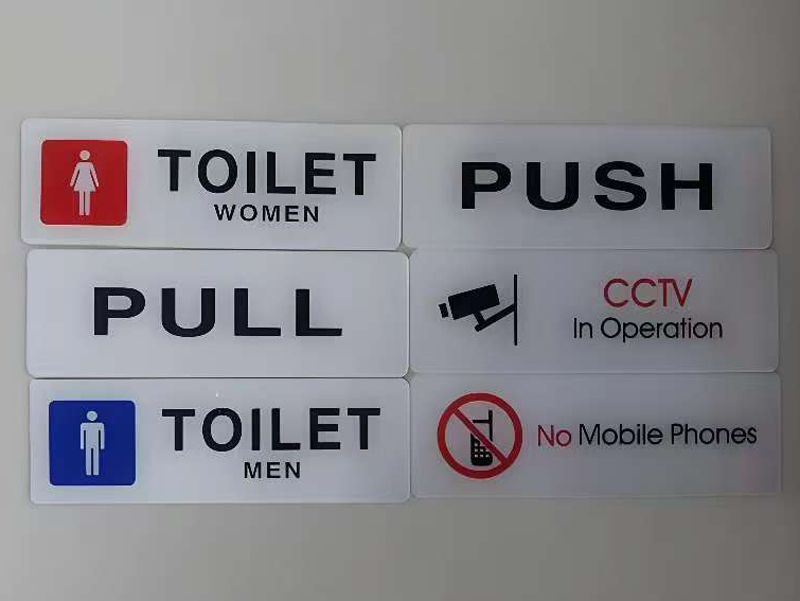

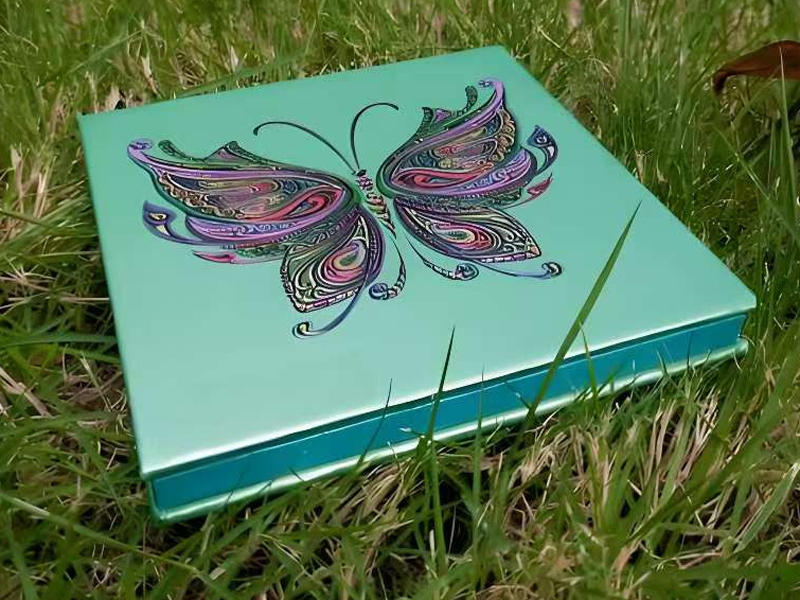

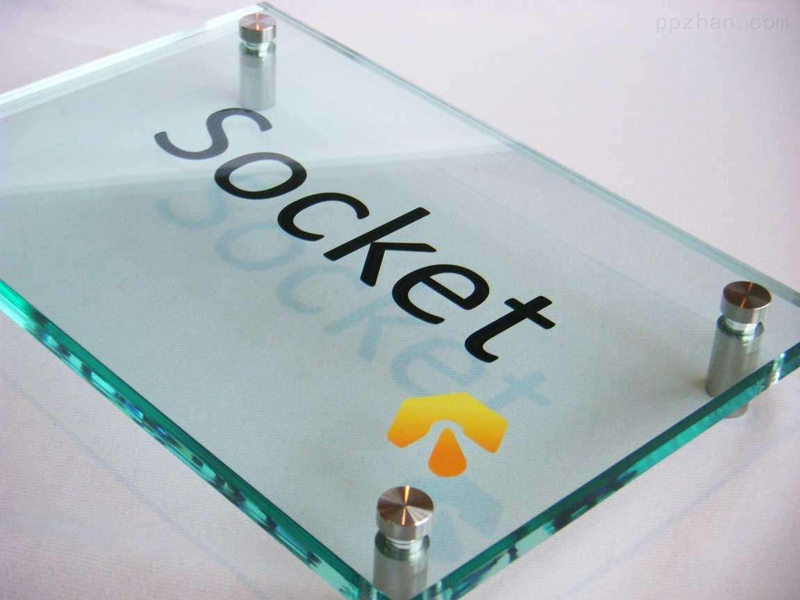

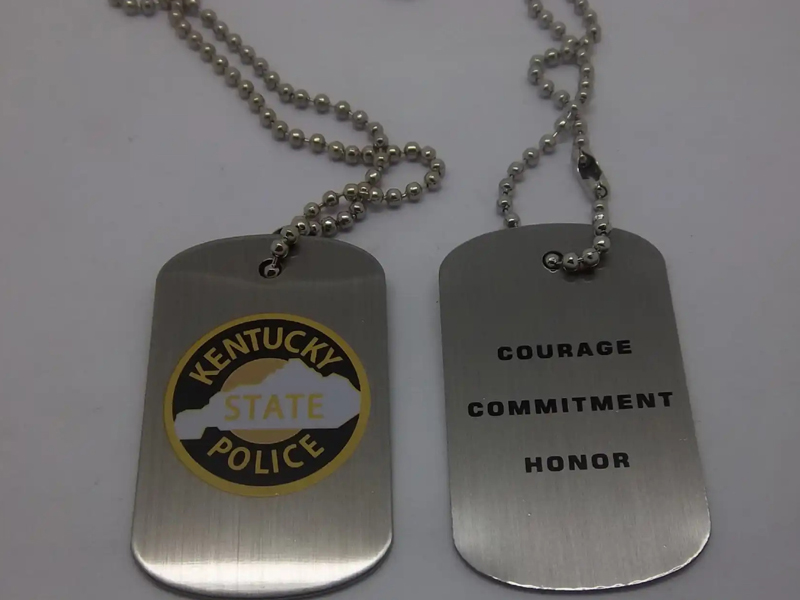

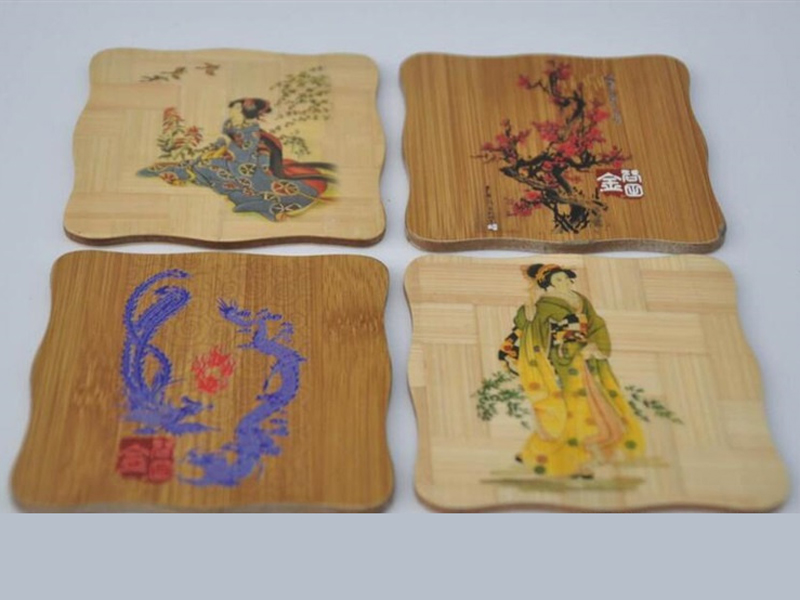

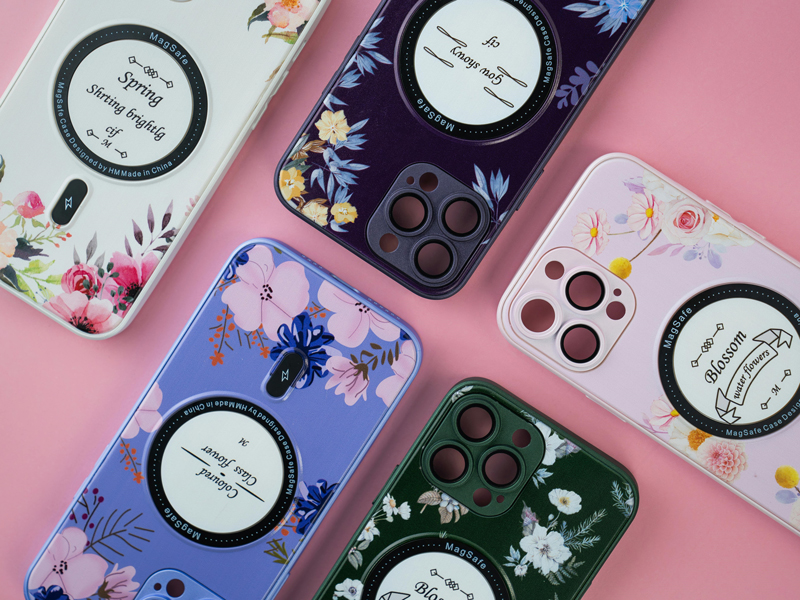

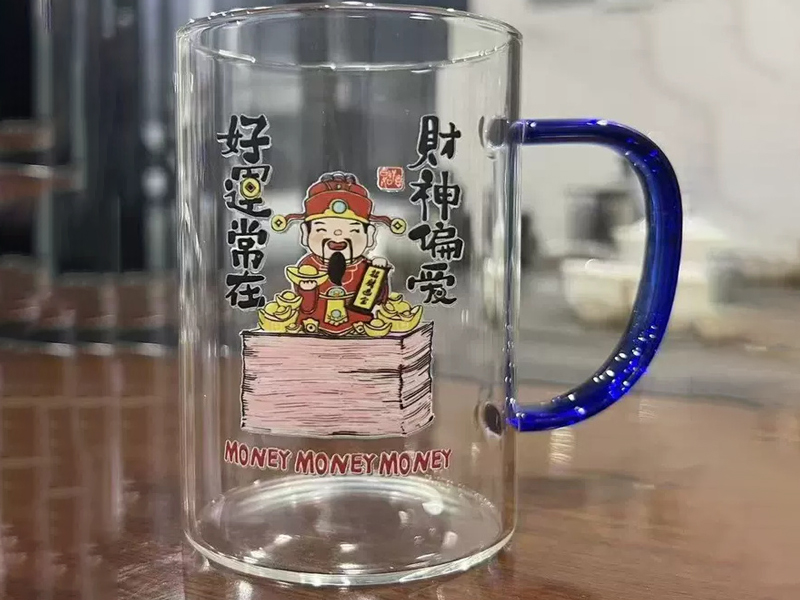

5. Universal Printer: it can print almost all flat items except textile and cylinder

3560 UV FLATBED PRINTER A2 size

Technicial Parameters

MODEL	BR-UV3560
PRINT SIZE	350mm×600mm
PRINT HEAD	Epson TX800 heads
PRINTHEAD QUANTITY	1-2PCS
PRINTHEAD HEIGHT	150mm
LIFTING FUNCTION	Intelligent platform lifting
Ink supply system	Automatic ink supply
PRINT PRECISION &PRINT SPEED	4pass 720dpi×720dpi	4m²/h (SKETCH MODE)
	8pass 1440dpi×720dpi	2.5m²/h (PRODUCTION MODE)
	12pass 1440dpi×1440dpi	1m²/h (RESOLUTION MODE)
INK	UV ink
PRINT COLOR	CMYK/dual CMYK/CMYK+W/CMYK+W+V
PRINT WEIGHT	20KG
DRYING SYSTEM	UV led
RIP SOFTWARE	MAINTOP
COMPUTER OPERTIAON SYSTEM	Windows 7/Windows 10
FILE FORMAT	TIFF,PDF,JPEG etc.
POWER REQUIREMENT	AC220V(+10),50HZ~60HZ,100W
ENVIRONMENT	Temperature:20℃-28℃，Humidity:40%-60%,
MACHINE SIZE	L×W×H(860×960×575)MM
PACKAGE SIZE	L×W×H(900×1000×620)MM

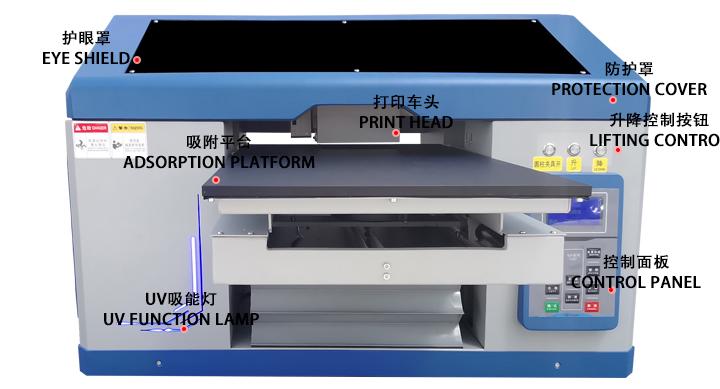

Equipment Advantages

Front lid

The black tea front cover can prevent the stimulation of high intensity ultraviolet rays, and protect the glasses and body contact

Side cover

The suspended side cover is conducive to the long-time operation of the equipment to reduce the temperature and avoid the high temperature and short circuit of the circuit

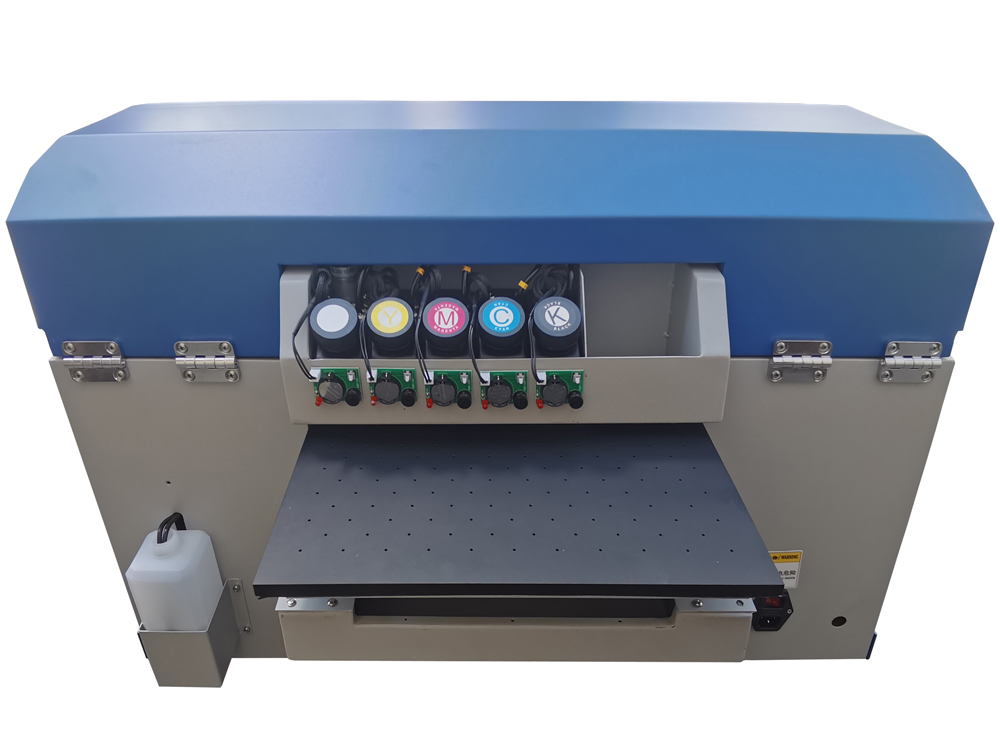

Ink trough

Adopt fixed encircling design to prevent ink leakage when the device is moving or adding ink

Nozzle base plate

It doesn't need to fix the screw inside the nozzle to avoid inaccurate alignment or color deviation when replacing the nozzle

X-axis operation

Parallel stretching belt tooth integrated structure is conducive to ink breaking during printing

Y-axis operation

Double SBK slide, four TB slides are connected to keep the equipment stable when moving forward and backward

Automatic ink extraction system

Sliding ink stack, independent ink pump, strong sealing, built-in emergency ink extractor

Ink cartridge function

Automatic lack of ink alarm, white ink mixing function. The nozzle has longer service life and smoother effect
