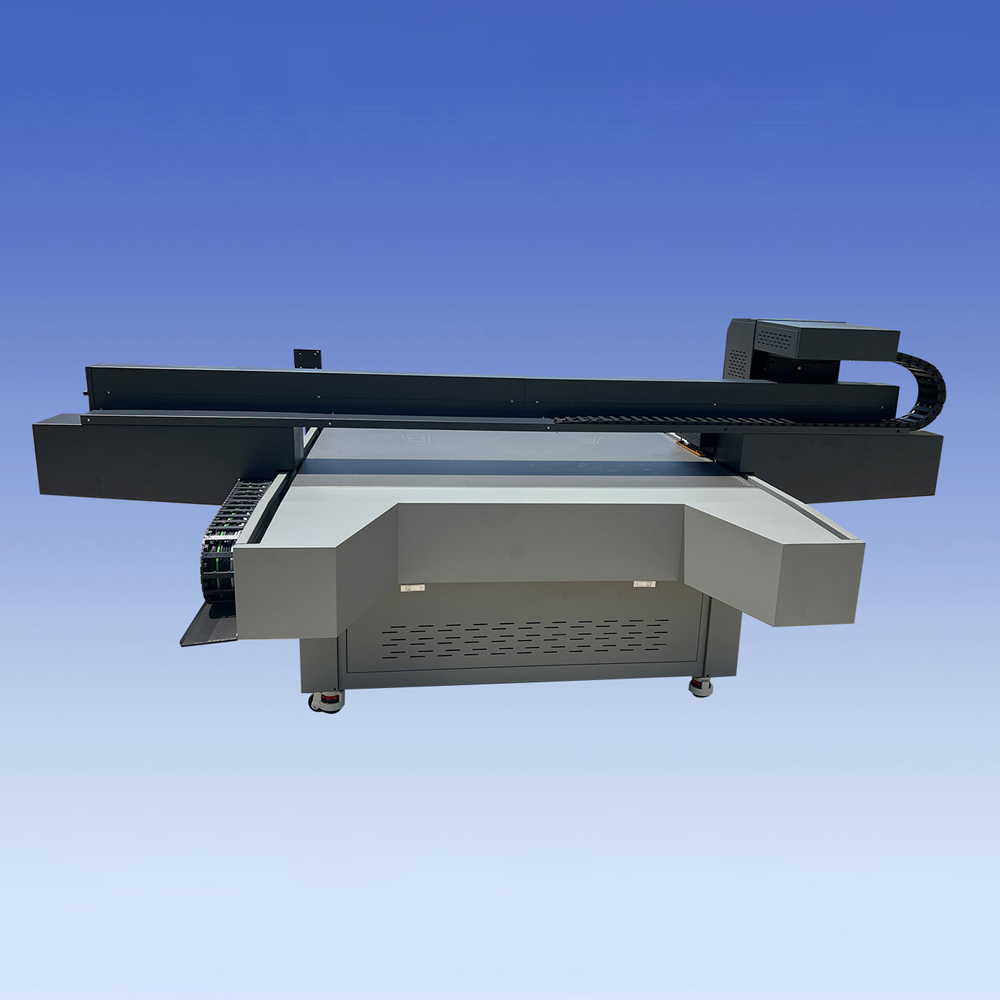

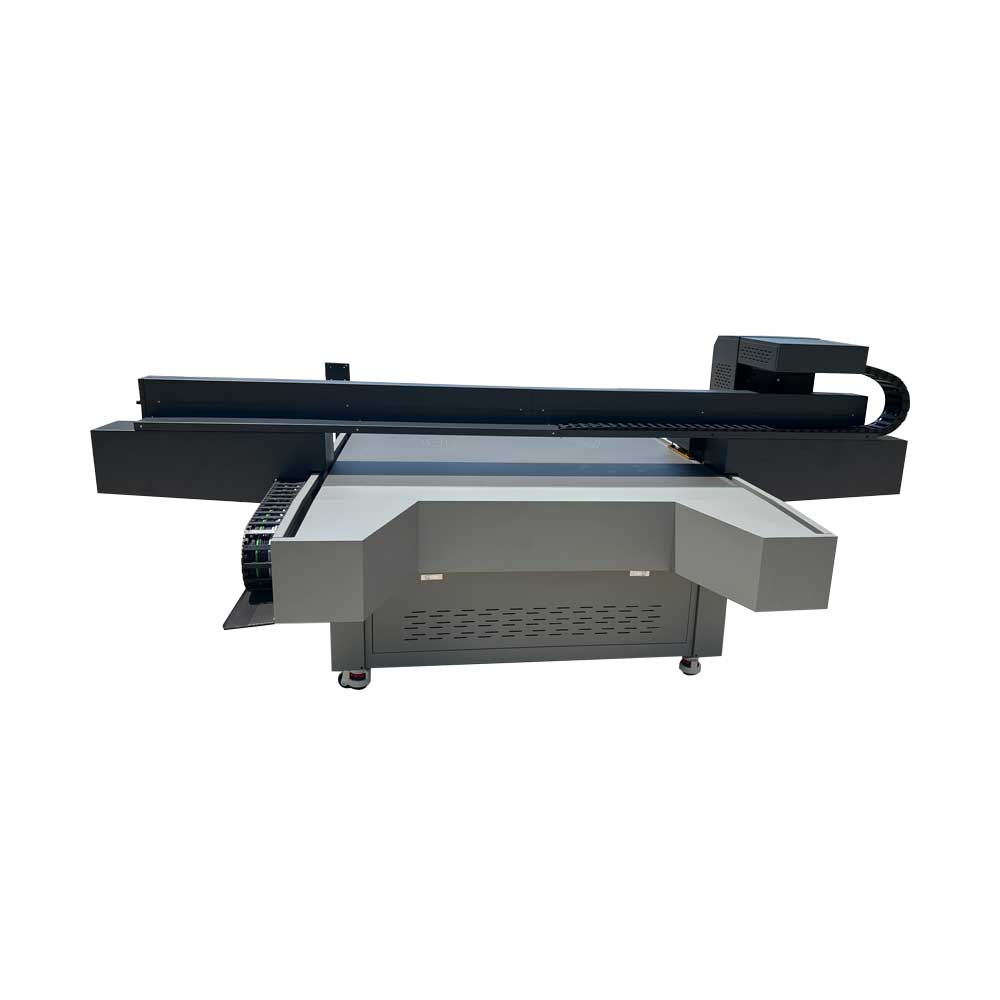

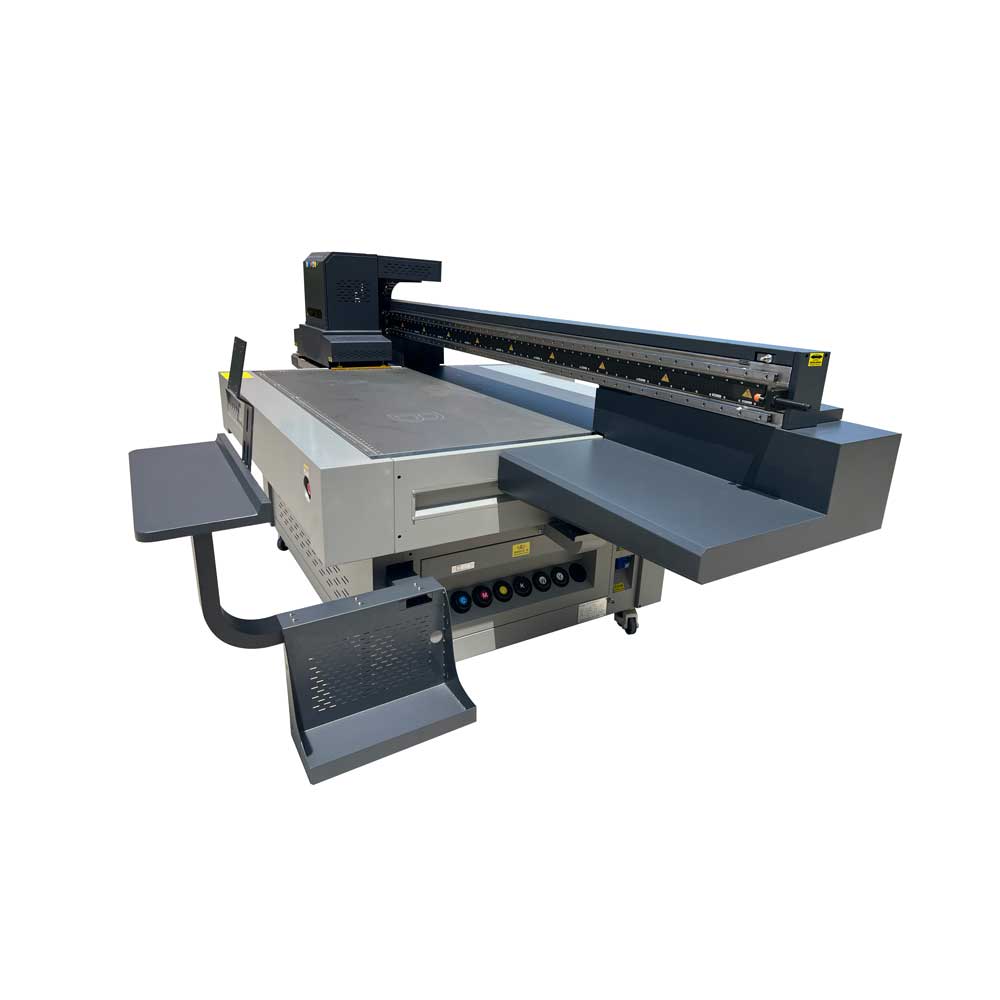

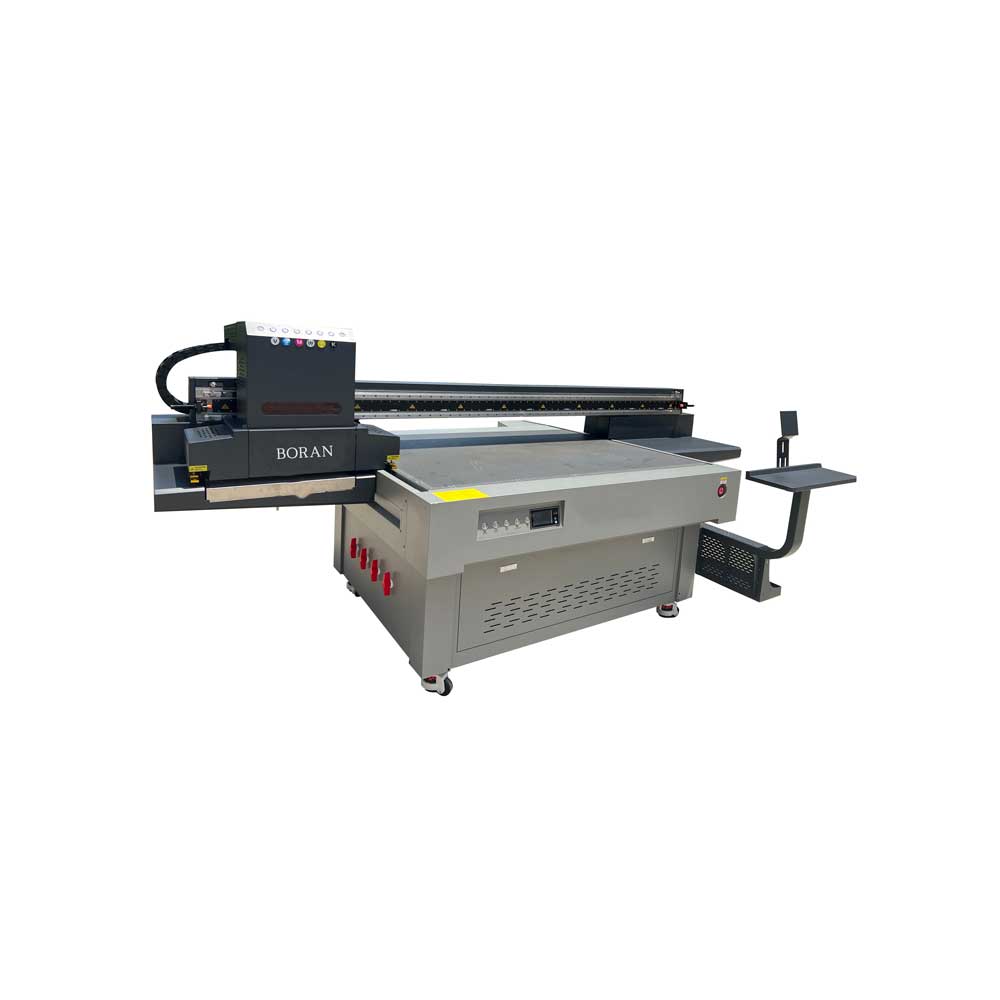

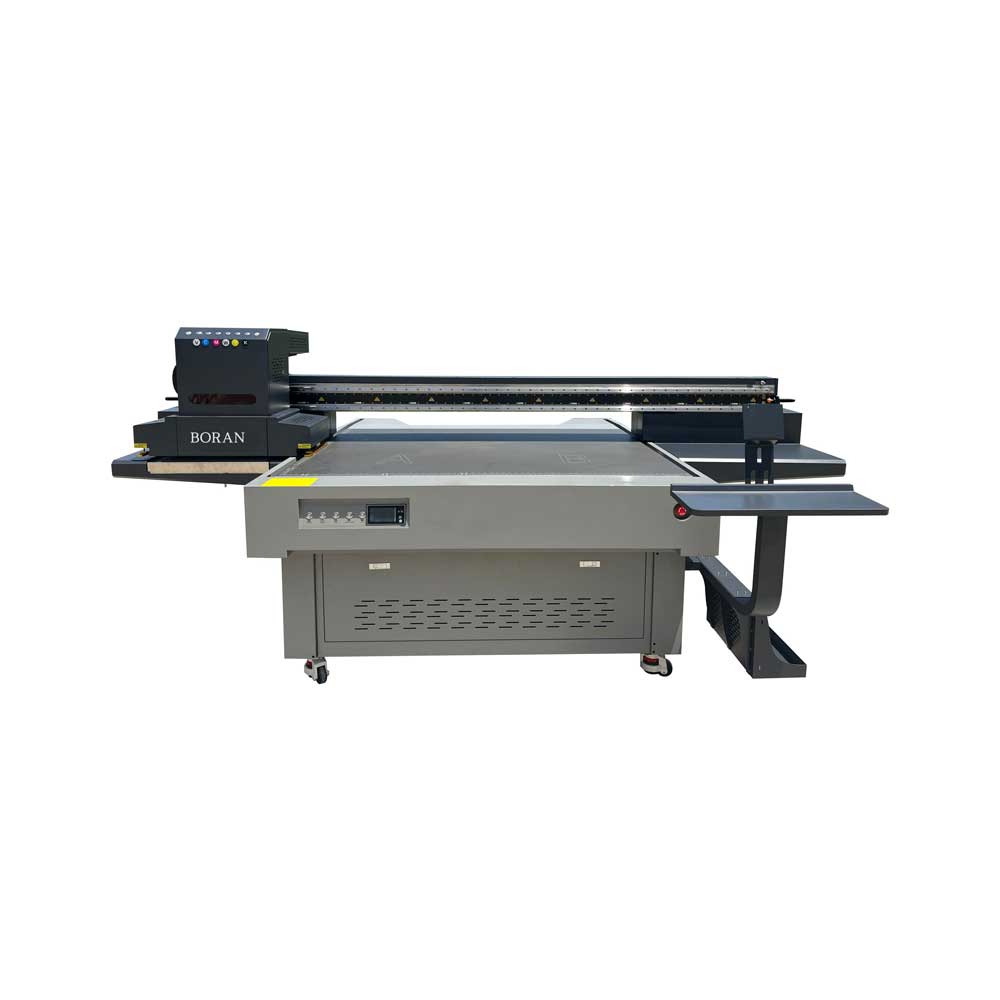

1612 UV Flatbed PrinterA0 UV Flatbed Printer Machine For Acrylic Glass Metal Wood

1612 UV Flatbed PrinterA0 UV Flatbed Printer Machine For Acrylic Glass Metal Wood
Print heads: Ricoh G5/G6 heads (2- 8 pcs, Konica 1024A heads optional)
Size: 1600x1200mm
Color: CMYK+W/CMYK+W+V/ Double CMYK+W/ Four CMYK
Speed:10-40㎡/h
Application: acrylic, glass, metal, wood, ABS board, PVC sheet, plastic, billboard, canvas, ceramic tile, phone cover, ceramic tile, flooring leather, sample book etc.

Product Introduction

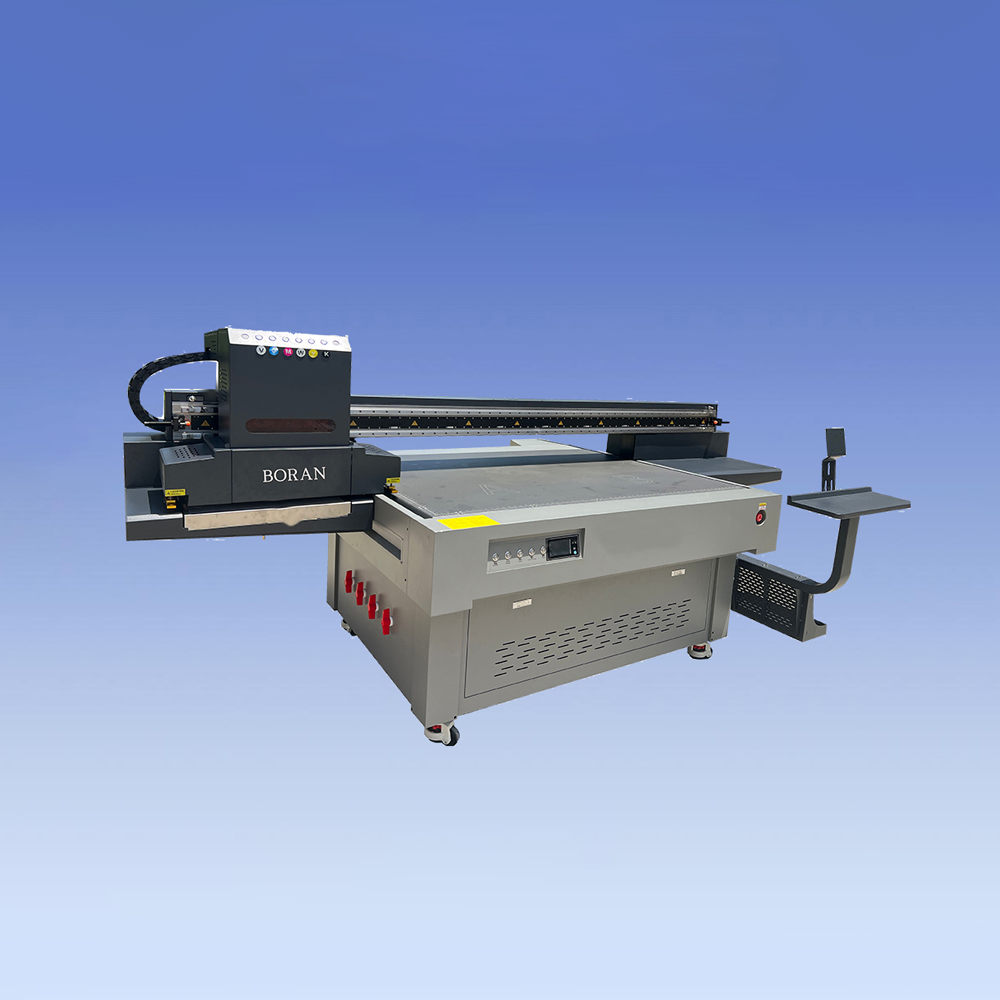

1612 UV Flatbed PrinterA0 UV Flatbed Printer Machine For Acrylic Glass Metal Wood is a high-quality large format UV flatbed printer for industrial-level production. Its max printing size is 1.6x 1.2m. It supports 2-8pcs of Ricoh G5/G6 printheads which allows for a wide range of speed requirements and more color can be optional.

Our UV flatbed printer has been widely used for acrylic, glass, metal, wood, ABS board, PVC sheet, plastic, billboard, canvas, ceramic tile, phone cover, ceramic tile, flooring leather, brochure,sample book,bottle, cups etc.

010203040506070809101112

Technical Parameters

MODEL	BR-R1612
PRINT SIZE	1600mm×1200mm
PRINT HEAD	Ricoh G5/ G6 Heads
PRINTHEAD QUANTITY	3 PCS (3-8pcs optional)
PRINTHEAD HEIGHT	150mm
PRINT WEIGHT	Max Weight 100kg
PRINT PRECISION &PRINT SPEED	4pass 726dpi×600dpi	18㎡/h (3 heads)
	6pass 726dpi×900dpi	12㎡/h (3 heads)
	8pass 726dpi×1200dpi	8㎡/h (3 heads)
PRINT COLOR	CMYK+W/CMYK+W+V (Double CMYK+W/3 CMYK+W/4 CMYK /CMYKLcLm+W+V optional)
Print Media	PVC board, PS Board，foam board, metal, glass ,ceramic tile, acrylic,KT board ect. various types of Board material
PLATFORM ADSORPTION	1500W Turbo fan
DRYING SYSTEM	UV led
RIP SOFTWARE	PHOTOPRINT
COMPUTER OPERTIAON SYSTEM	Windows 7/Windows 10
FILE FORMAT	TIFF,PDF,JPEG
POWER REQUIREMENT	AC220V(+10),50HZ~60HZ, 3KW
ENVIRONMENT	Temperature:20℃-32℃，Humidity:40%-60%
MACHINE SIZE	L×W×H(3420×2000×1500)MM
PACKAGE SIZE	L×W×H(3550×2100×1750)MM

Feature

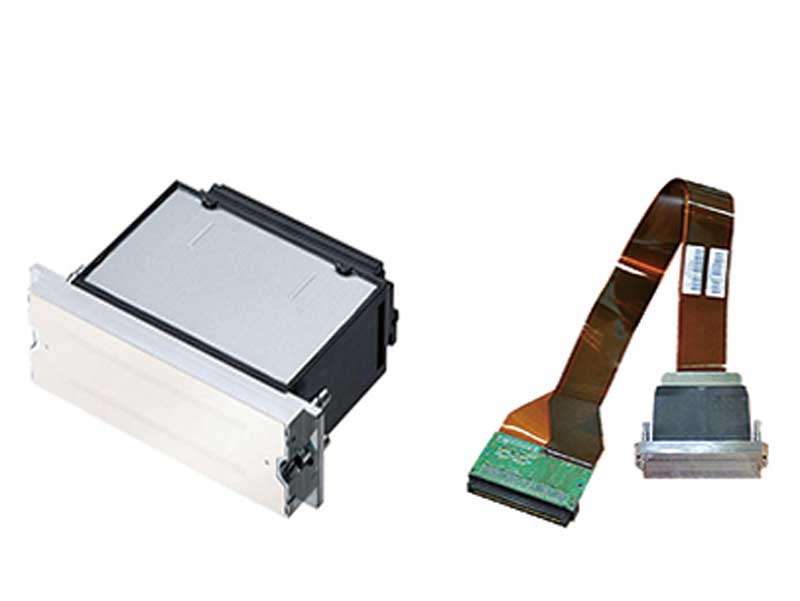

Imported industrial grade print head Ricoh G5 or G6 heads

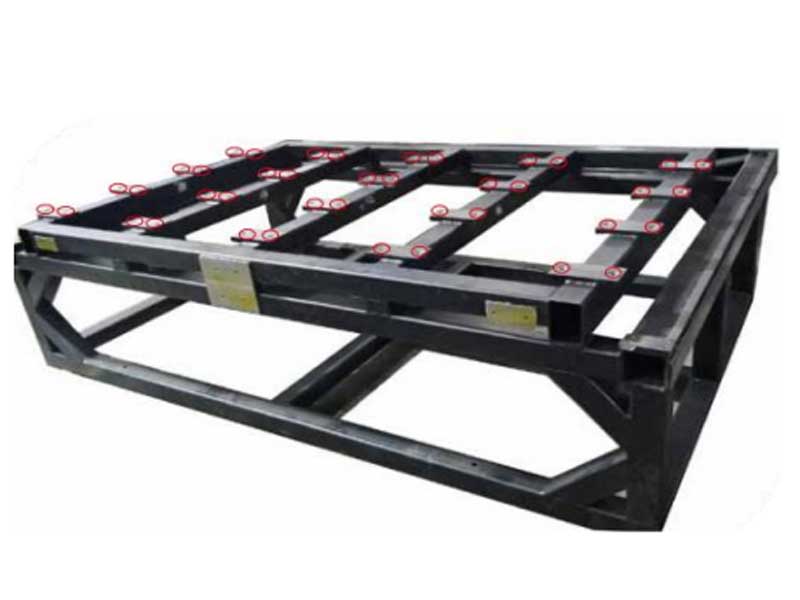

Integral gantry milling steel frame

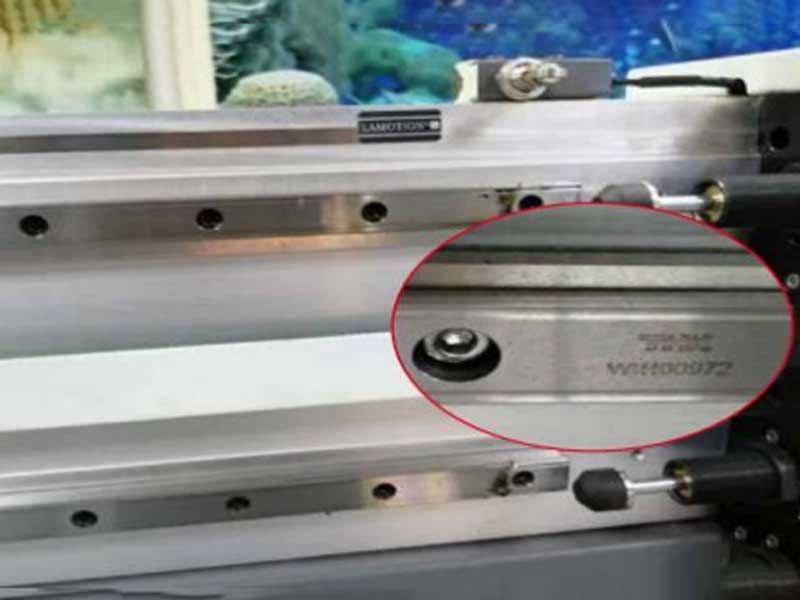

Imported Japanese THK guide rail
Imported 1 micron metal grating

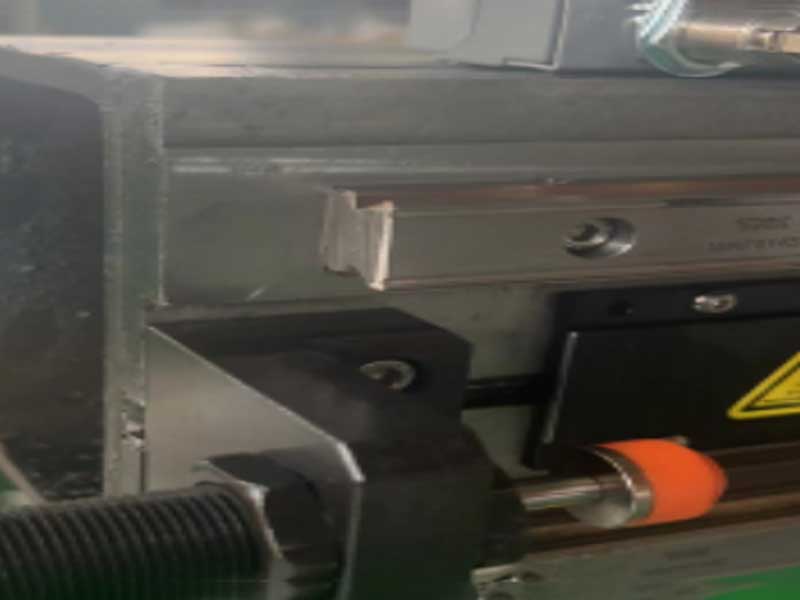

Thickened precision milled steel beam

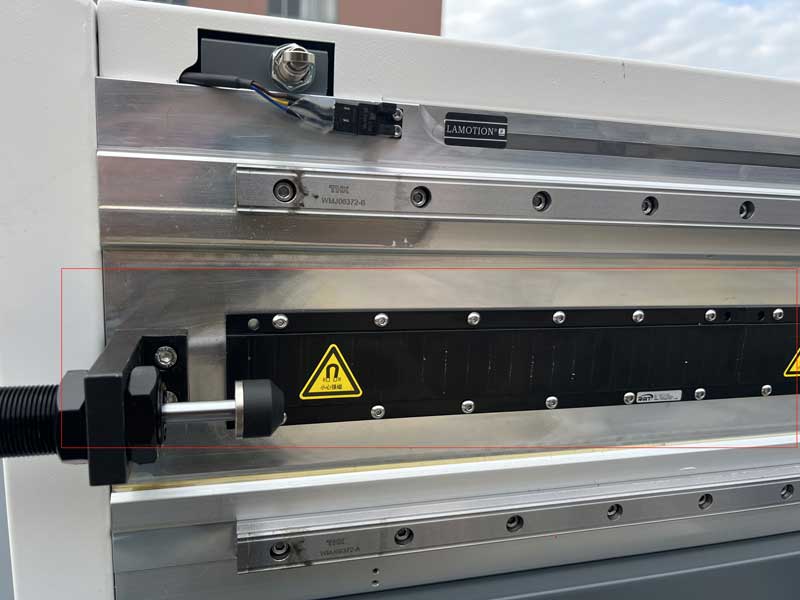

Imported magnetic levitation linear motor in x axis

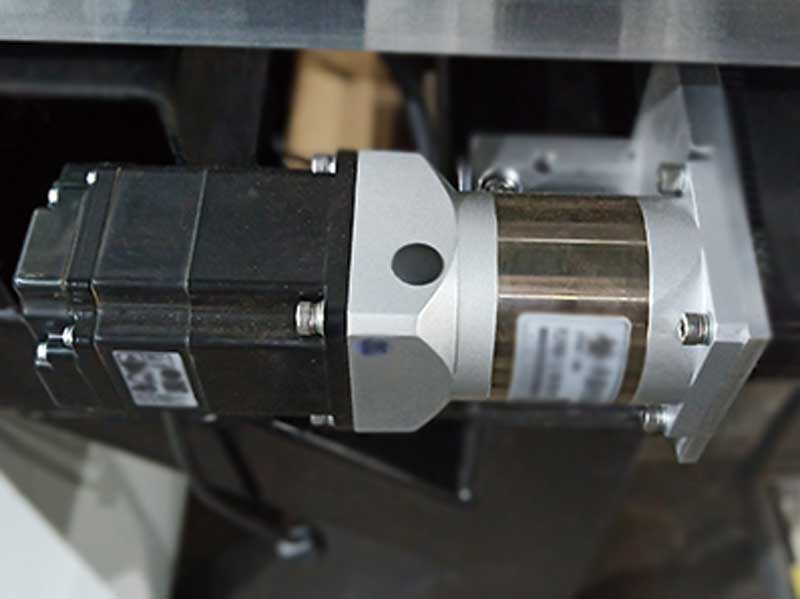

Double precision screw rod and imported Fuji Motor in Y axis
RIP PP software

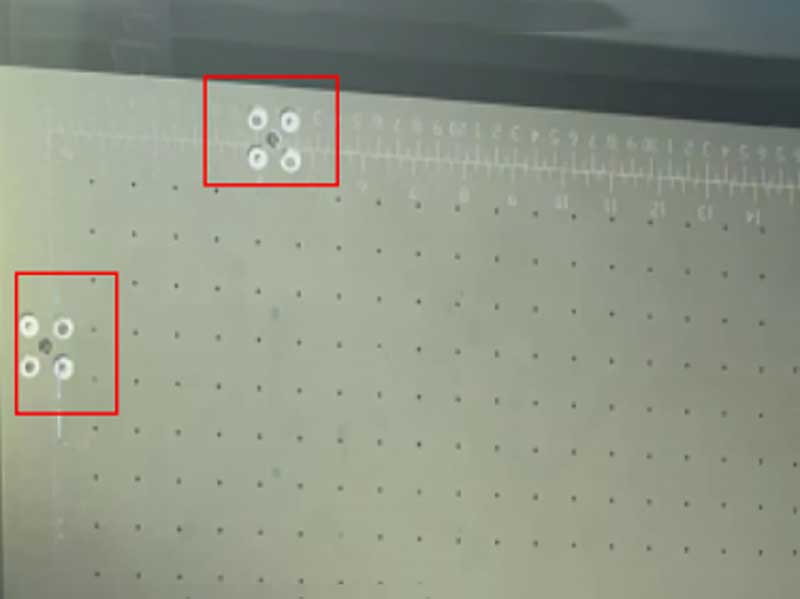

Platform positioning

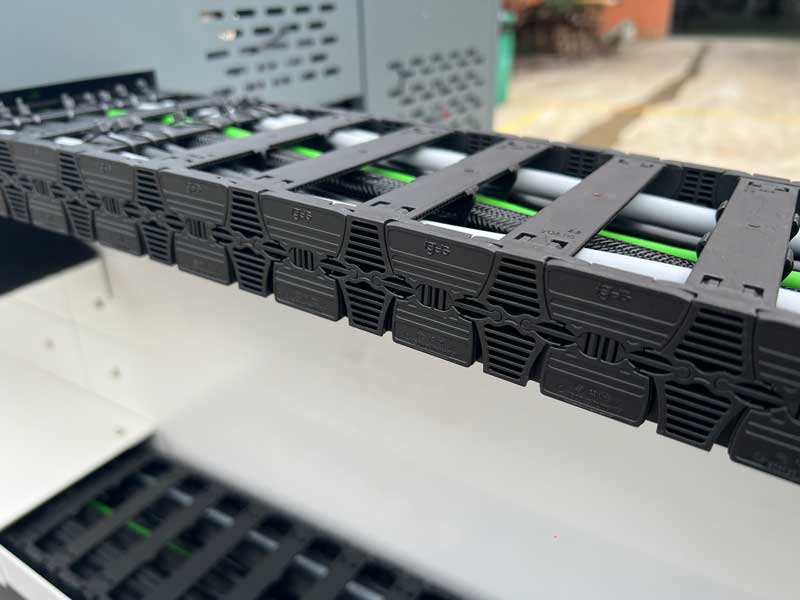

German IGUS tow chain

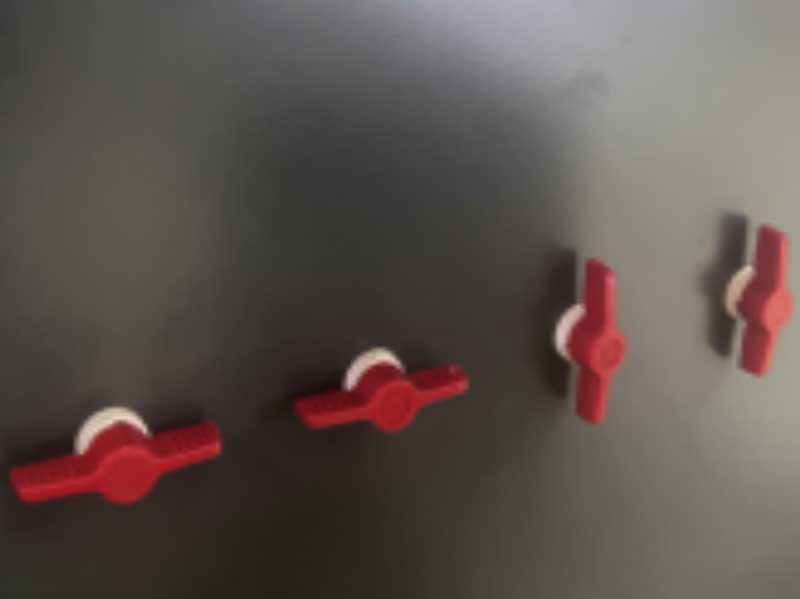

Platform subregional adsorption function

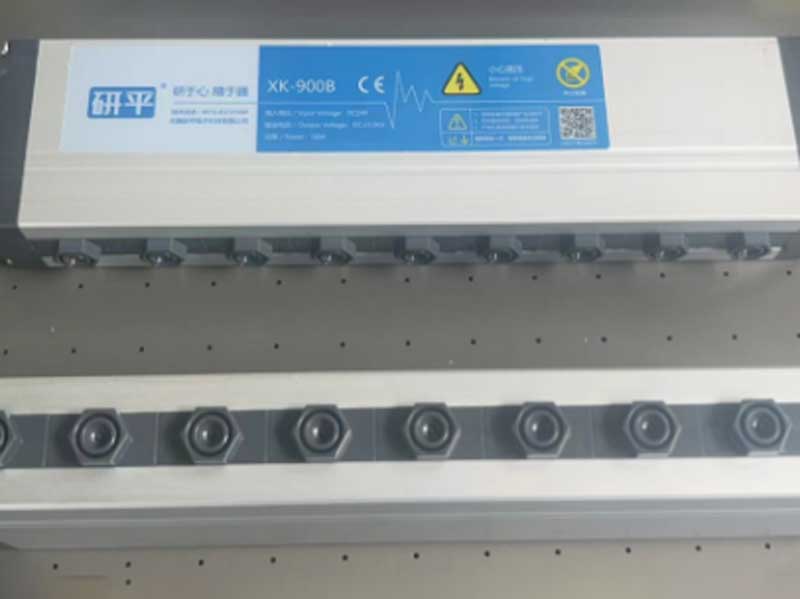

Eliminate static electricity system

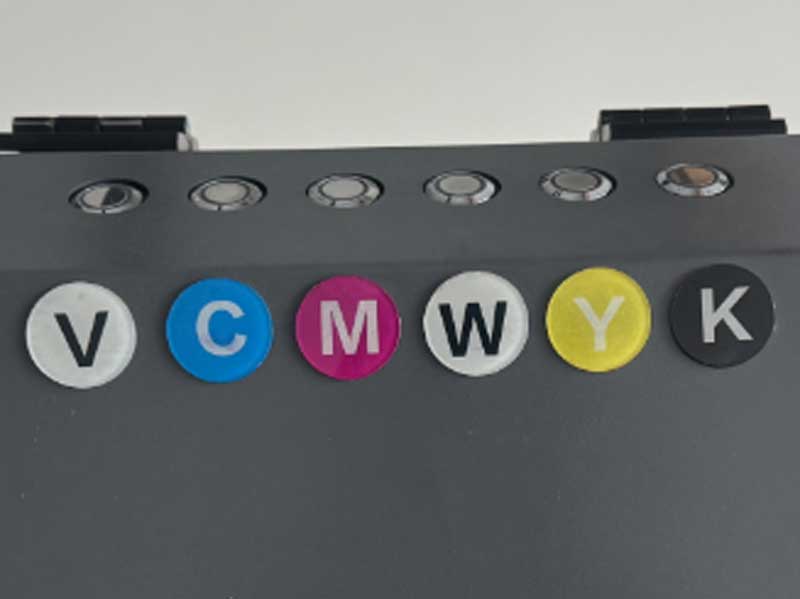

Separate color fill ink button

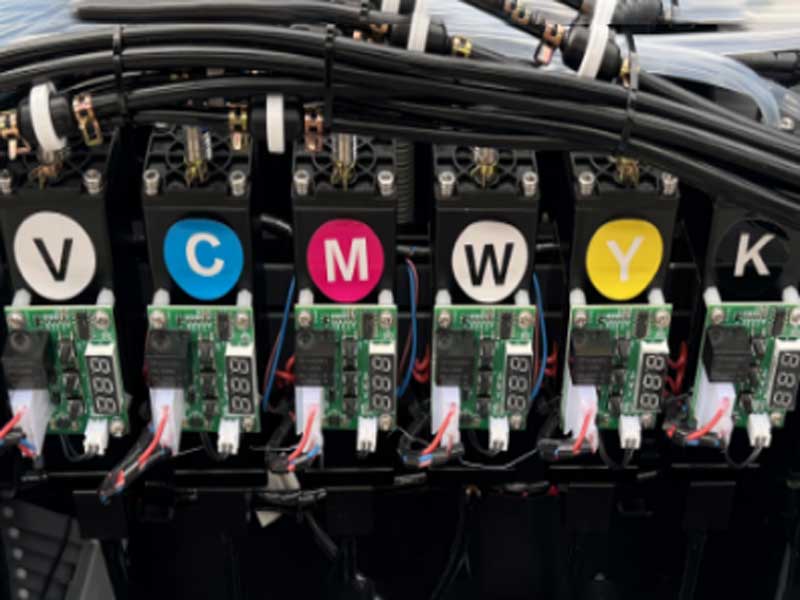

Heating function for secondary ink cartridge
Continue the printing function

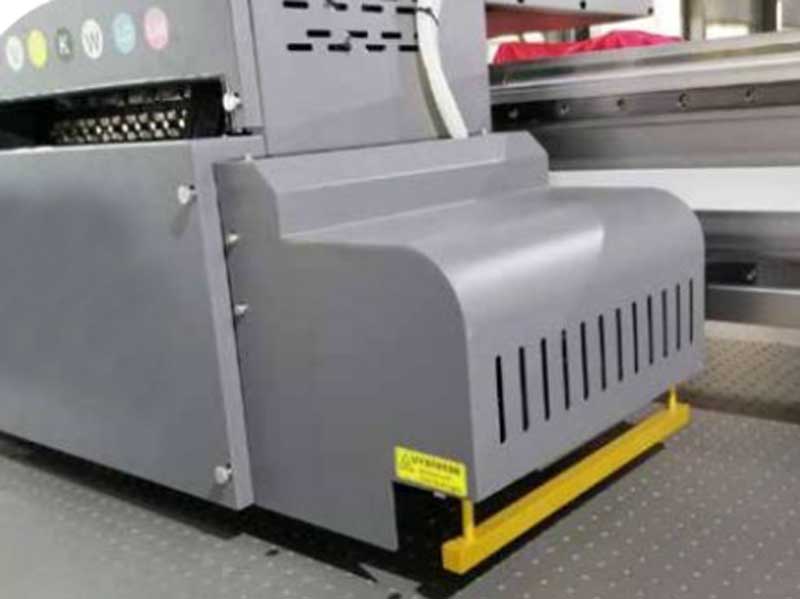

Two-way collision avoidance device

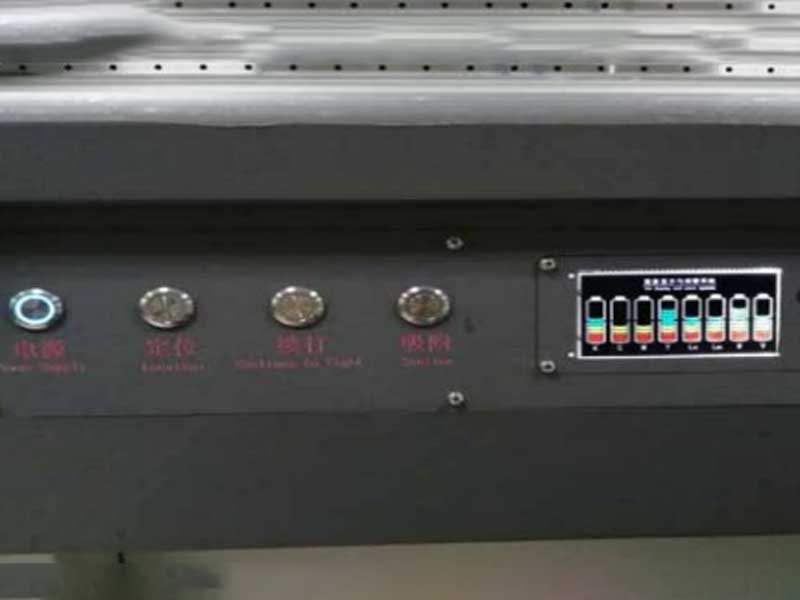

Ink level display screen
Head Anti-collision system

Multiple printing effect can be selected to achieve your different need of the printing effect need.

Advantage of UV Flatbed Printers

Personalized customization

It can realize the customization of personalized gifts. At the same time, there is no too much limitation on the product. Mobile phone cases, stationery and other crafts can be printed, and there is no limit to the printed pattern.

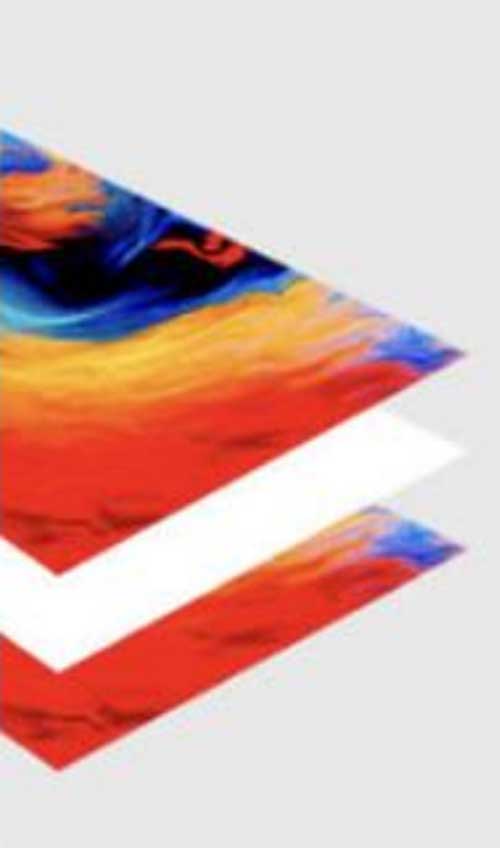

Multiple printing effect

Multiple printing effect can be selected to achieve the multiple effects display. It can not only print the flat effect, but also print the pattern to visually present a 3D effect, and feels uneven, which greatly improves the authenticity and added value of the product, especially after print the effect of varnish, which is very realistic and the texture is highlighted.

Wide range of printable materials

It can meet the printing of more than 90% of the materials on the market, from soft materials to hard materials, paper, cloth, plastic, PE,PVC and other types of metal plates, they all can be printed. The application of UV flatbed printer can be seen everywhere around us.
